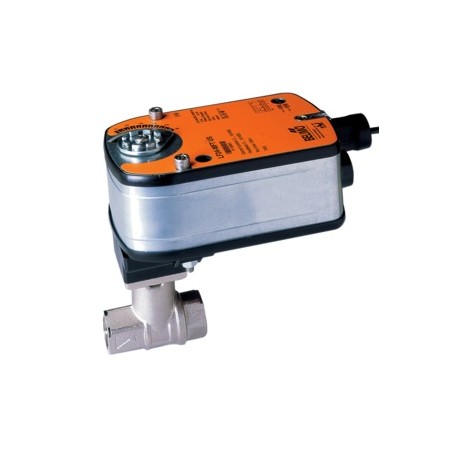

Belimo B210+LF120-S | CCV | 0.5 | 2 Way | 1.2 Cv | w/ Spg Rtn | 120V | On/Off

Product Description

The Belimo B210+LF120-S is a control valve designed for heating and cooling applications in air handling units. This valve operates with a flow capacity of 1.2 Cv and is suitable for a range of hydronic systems.

• Designed for air handling units and fan coil units
• Spring return actuator for reliable operation
• Works with chilled or hot water up to sixty percent glycol

Product Highlights

This valve facilitates precise flow control and is ideal for applications requiring variable flow management.

Product Information

Standard Information

• Brand: Belimo
• MPN: B210+LF120-S

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75 degrees
• Cv: 1.2
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: No
• Trim: Stainless steel
• Valve Size: 0.5 inches
• Actuator Type: Spring return
• Auxiliary Switches: 1 x SPDT
• Degree of Protection: IP54 NEMA 2
• Electrical Connection: Cable
• Power Consumption (Holding): 3.5 W
• Power Consumption (Running): 5.5 W
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 75 seconds / 90 degrees
• Voltage AC/DC: AC 120 V
