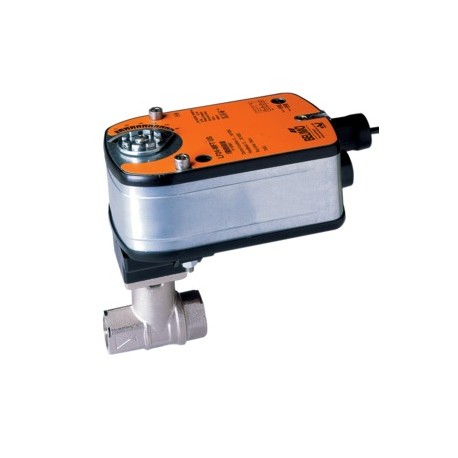

Belimo B210+LF120 CCV 0.5 2 Way 1.2 Cv w/ Spg Rtn 120V On/Off

Product Description

The Belimo B210+LF120 is a control valve designed for air handling units and fan coil units. This valve is known for its application in heating and cooling coils. It can be used in various systems such as unit ventilators and VAV box reheat coils. It also adapts well to hydronic systems with variable flow requirements.

• Two-way valve pattern
• Spring return actuator type
• Suitable for chilled or hot water with up to sixty percent glycol

Product Highlights

This valve is essential for regulating flow in HVAC applications and is compatible with multiple systems.

Product Information

Standard Information

• Brand: Belimo
• MPN: B210+LF120

Technical Specifications

• Cv: 1.2
• Valve Size: 0.5 [15]
• Angle of Rotation: 90 degrees
• Fluid Compatibility: Chilled or hot water up to 60% glycol
• End Fitting: Internal thread
• Pressure Independent: No
• Trim Material: Stainless steel
• Electrical Connection: Cable
• Actuator Type: Spring return
• Degree of Protection: IP54 NEMA2
• Voltage: AC 120V
• Power Consumption (Holding): 3.5 W
• Power Consumption (Running): 5.5 W
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 75 seconds / 90 degrees
