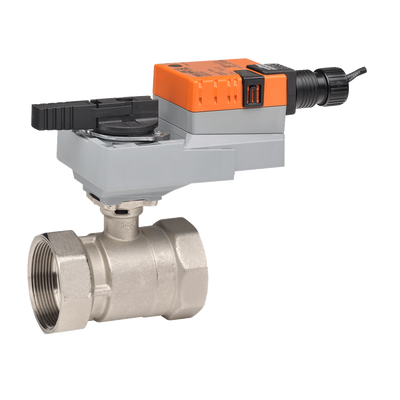

Belimo B209+LRB24-SR-T Characterized Control Valve 0.5 Inch 2 Way 0.8 Cv 24V Non-Spring Return

Product Description

The Belimo B209+LRB24-SR-T is a high-performance characterized control valve designed for precise control in HVAC systems. This 0.5-inch, 2-way valve features a 0.8 Cv and operates with a 24V non-spring return actuator suitable for variable flow hydronic systems.

• Optimal for air handling units on heating or cooling coils.
• Stainless steel trim enhances durability and performance.
• IP54 NEMA 2 rated for reliable operation in diverse environments.

Product Highlights

This valve's compact design and non-spring actuator make it ideal for applications where space and reliability are crucial. It offers a straightforward electrical connection with push-button manual override for ease of use.

Product Information

Technical Specifications

• Valve Size: 0.5 inches
• Actuator Type: Non fail-safe
• Control Type: DC 2-10 V
• Voltage: AC/DC 24V
• Rotation: 90 degrees
• Running Time: 90 seconds
• Connection Type: Internal thread
• Manual Override: External push button
