Belimo B209B+TR24-SR-T US Ccv 0.8 Cv

Product Description

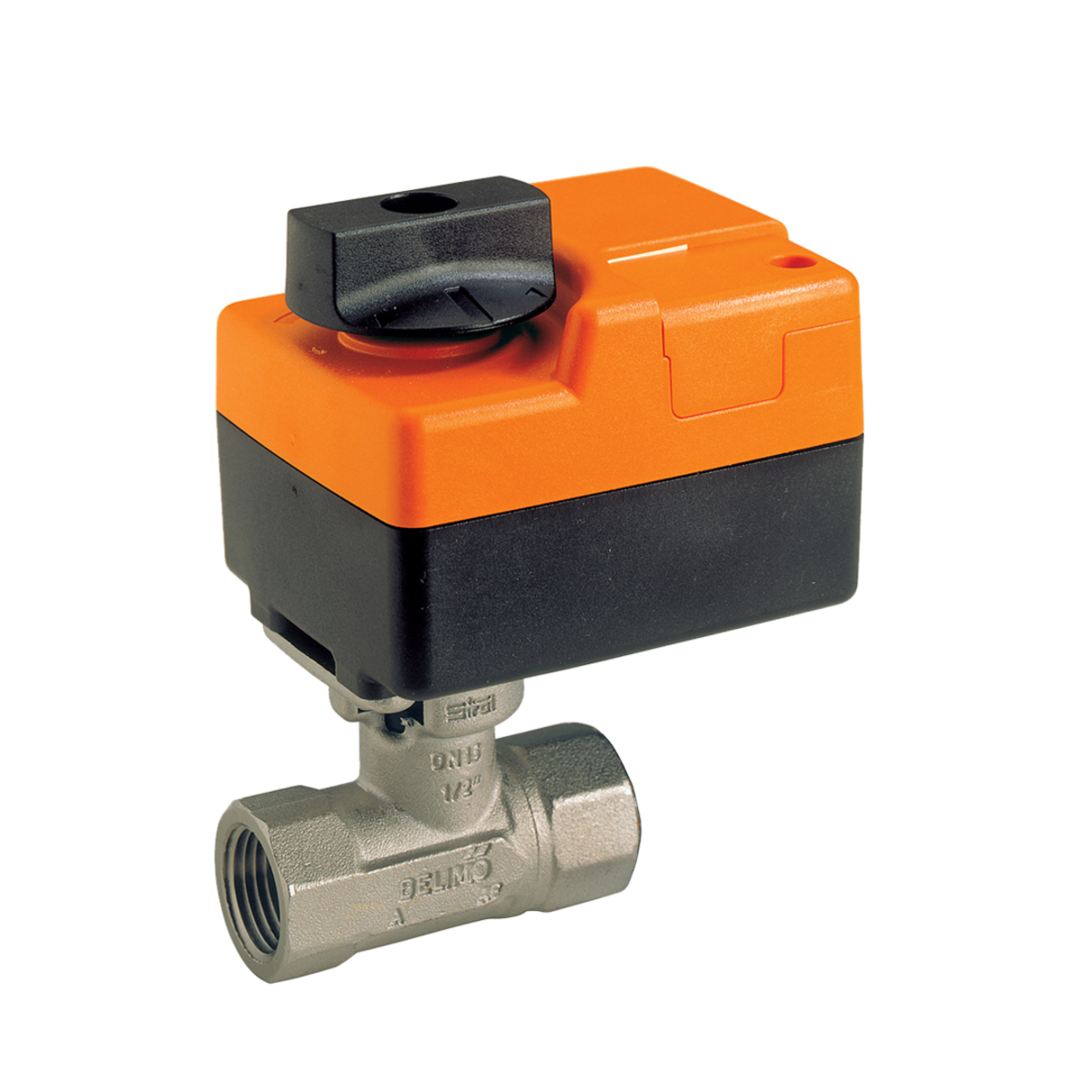

The BELIMO B209B+TR24-SR-T US is a characterized control valve with a forged brass, nickel-plated brass body, chrome-plated brass ball, and nickel-plated brass stem. It features a valve actuator, modulating, non-spring return, and operates on 24 VAC for 2 to 10 VDC or 4 to 20 mA control signals.

• Typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils
• Suitable in use in a hydronic system with variable flow
• Ball valve design offers self-cleaning and zero leakage

Product Highlights

This valve is rated for water temperatures up to 250 F and is maintenance-free, requiring no repacking after extended use.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: B209B+TR24-SR-T US
• Country of Origin: United States

Technical Specifications

• Housing: NEMA Type 1/ IP40
• Service: Chilled, Hot Water, Up To 60% Glycol
• Power Consumption: 0.5 W Running
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: -22 F To 122 F (-30 C To 50 C)
• Electrical Connection: Screw Terminal
• Brand: Belimo
• Manufacturer: Belimo
• Product Type: VALVE
• MPN: B209B+TR24-SR-T US
• Angle of Rotation: 90
• Cv: 0.8
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: NO
• Trim: Chrome plated brass
• Valve Size: 0.5" [15]
• Actuator Type: Non fail-safe
• Control Type: DC 2...10 V
• Degree of Protection: IP40 NEMA 1
• Manual Override: Push down handle
• Running Time (Motor): 90 s / 90B0
• Voltage AC/DC: AC/DC 24 V
• Runtime: 90 Secs
• Voltage: 24vac
• Actuator: TR24-SR-T US
• Fail-Safe: Non-Spring Return
• Connection: NPT
• Valve Type: Regular
• Aux. Switch: 1
• Nema Rating: Nema 2
• Valve Piping: 2-Way
• Feedback Signal: 2-10vdc
• Close-Off Rating: 100 PSI
• Application: Chilled, Hot Water, up to 60% Glycol
• Category: Electric Actuator Valve Assemblies
• Connection type: Screw terminal (for 26 to 14 GA wire)
• Fail safe: Non Fail Safe
• Features and benefits: 95 seconds | 18 in-lbs [2 Nm] minimum | No Feedback | NPT female ends | Forged Brass, Nickel Plated
• Size: 1/2 Inch
• Supplier part number: B209B+TR24-SR-T US
