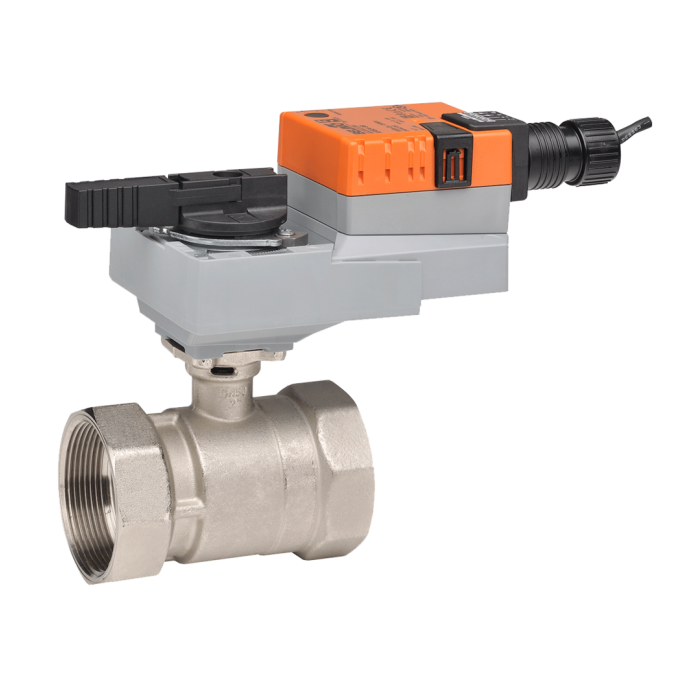

Belimo B209B+LRB120-3 CCV Assembly 2 Way, 1/2 in. NPT, 0.8 Cv

Product Description

The Belimo B209B+LRB120-3 is a characterized control valve designed for HVAC applications. This product features a nickel-plated brass body and is suitable for both chilled and hot water systems. With a voltage range of one hundred to two hundred forty VAC, it is compatible with standard electrical systems. The valve offers a flow coefficient of 0.8, making it efficient for various flow requirements.

• Constructed from durable nickel-plated brass.
• Capable of handling chilled or hot water with up to sixty percent glycol.
• Operates with a 90 degree angle of rotation.

Product Highlights

This valve performs well in temperature control applications, maintaining flow efficiency and reliability.

Product Information

Standard Information

• Brand: Belimo
• MPN: B209B+LRB120-3

Technical Specifications

• Valve Size: 0.5 inches [15]
• Control Type: Floating/3-point
• Actuator Type: Non fail-safe
• Pressure Independent: No
• Cv: 0.8
• Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
• Electrical Connection: Cable
• Running Time (Motor): 90 seconds / 90 degrees
