Belimo B209+TR24-SR US Ccv Assembly 2 Way 0.8 Cv

Product Description

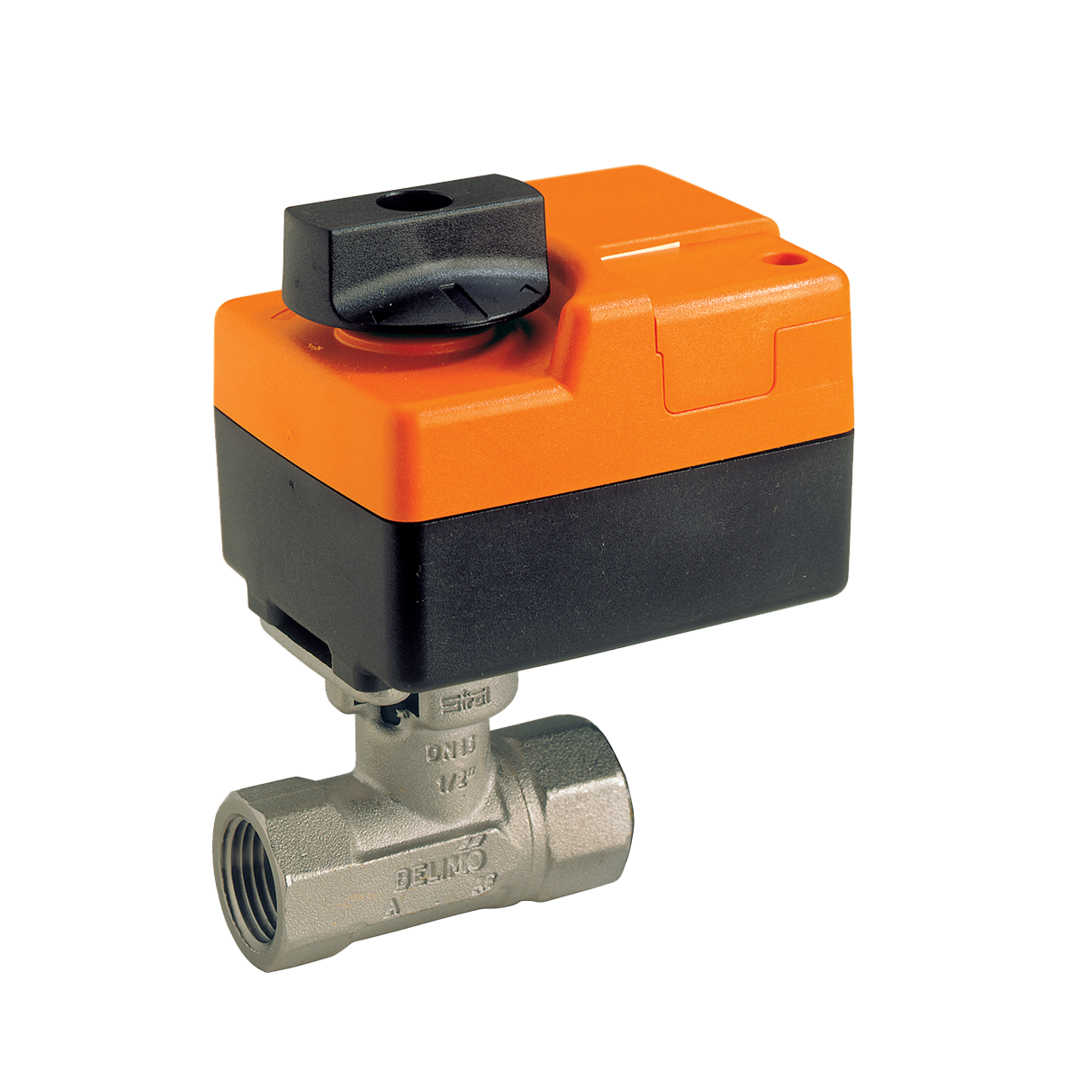

The BELIMO B209+TR24-SR US is a characterized control valve assembly. It features a forged brass, nickel-plated brass body, and stainless steel ball and stem. The valve actuator is modulating and non-spring return, operating at 24 VAC for 2 to 10 VDC or 4 to 20 mA control signals.

• Valve is used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils
• Valve is suitable in use in a hydronic system with variable flow
• Ball valve design offers self-cleaning and zero leakage

Product Highlights

This valve is rated for water temperatures up to 250 F and maintenance-free, requiring no repacking after extended use.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: B209+TR24-SR US
• Country of Origin: United States

Technical Specifications

• Housing: NEMA Type 1/ IP40
• Service: Chilled, Hot Water, Up To 60% Glycol
• Power Consumption: 0.5 W Running
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: -22 F To 122 F (-30 C To 50 C)
• Electrical Connection: 3 ft. 18 GA Plenum Rated Cable
• Angle of Rotation: 90
• Cv: 0.8
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: NO
• Trim: Stainless steel
• Valve Size: 0.5" [15]
• Actuator Type: Non fail-safe
• Control Type: DC 2...10 V
• Degree of Protection: IP40 NEMA 1
• Manual Override: Push down handle
• Running Time (Motor): 90 s / 90B0
• Voltage AC/DC: AC/DC 24 V
• Runtime: 90 Secs
• Voltage: 24vac
• Actuator: TR24-SR US
• Assembly: Assembly
• Fail-Safe: Non-Spring Return
• Connection: NPT
• Valve Piping: 2-Way
• Feedback Signal: 2-10vdc
• Aux. Switch: 1
• Body Pressure Rating: 600 psi
• Power Consumption For Wire Sizing: 1 VA
• Protection category: IP40
• Degree Of Protection NEMA: NEMA 1
• Enclosure Type: UL Enclosure Type 1
• Brand: Belimo
• Control type: Modulating
• Torque: 18 in-lb
• Type: Assembly
• Supply Voltage (Nominal): 24 VAC
• Trim Material: Stainless Steel
• Size: 1/2 in
• Control Signal: Analog
