Belimo B209+TFRX24-SR Ccv Assembly 2 Way, 1/2 in. Npt, 0.8 Cv

Product Description

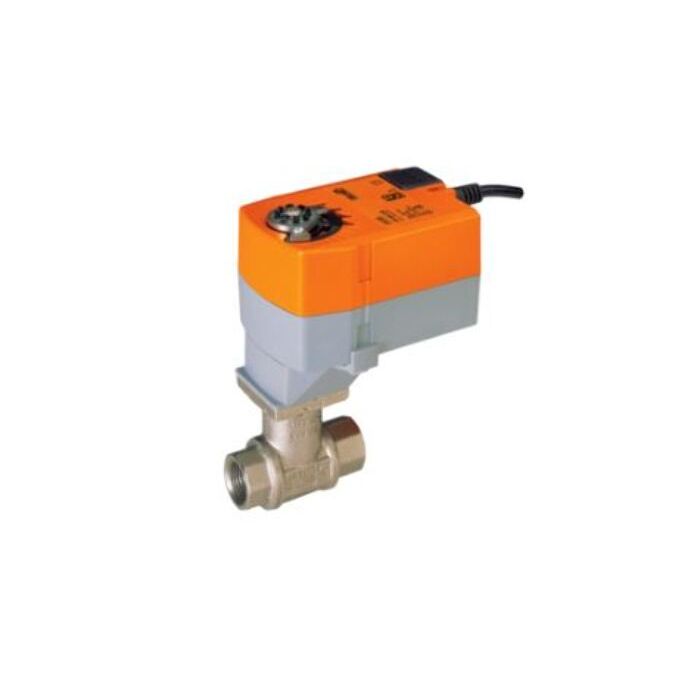

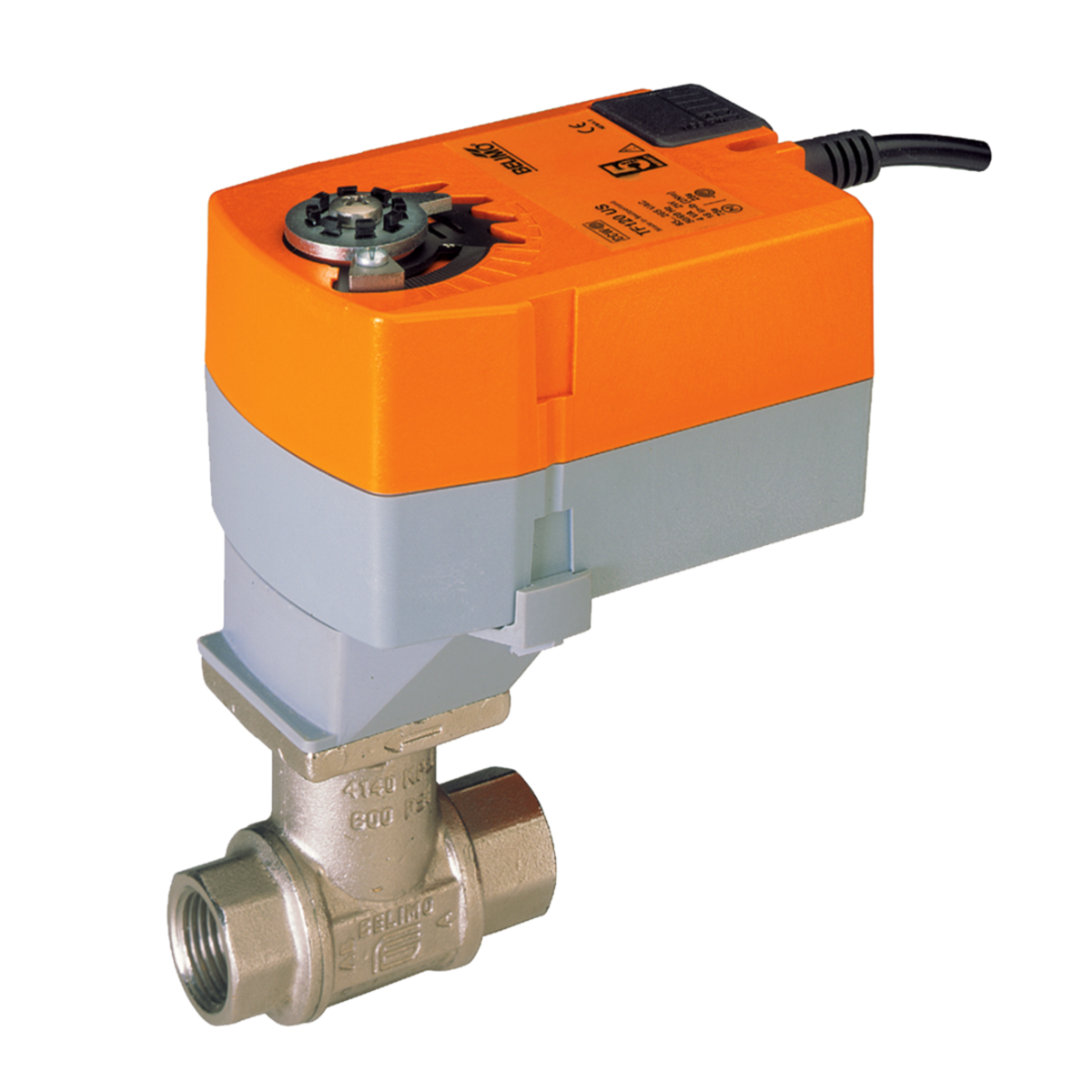

The BELIMO B209+TFRX24-SR is a characterized control valve assembly. It features a forged brass, nickel-plated brass body, and stainless steel ball and stem. The direct-coupled actuator delivers 22 in-lb of torque and offers modulating, spring return functionality with a 24 VAC power supply, compatible with 2 to 10 VDC or 4 to 20 mA control signals.

• Valve Is Typically Used In Air Handling Units On Heating Or Cooling Coils, And Fan Coil Unit Heating Or Cooling Coils
• Valve Is Suitable In Use In A Hydronic System With Variable Flow
• Ball Valve Design Offers Self-Cleaning And Zero Leakage

Product Highlights

This control valve is designed for use in HVAC systems, providing precise control and reliable performance.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: B209+TFRX24-SR
• Country of Origin: United States

Technical Specifications

• Housing: NEMA 2, IP42, UL Enclosure Type 2
• Service: Chilled, Hot Water, Up To 60% Glycol
• Power Consumption: 2 W Running, 1 W Holding
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: -22 F To 122 F (-30 C To 50 C)
• Electrical Connection: 3, 10, Or 16 ft. 18 GA Appliance Cables With 1/2 in. Conduit Connector
• Angle of Rotation: 95
• Cv: 0.8
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: NO
• Trim: Stainless steel
• Valve Size: 0.5" [15]
• Actuator Type: Spring return
• Control Type: DC 2...10 V
• Degree of Protection: IP42 NEMA 2 UL Enclosure Type 2
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2 W
• Running Time (Fail-safe): <25 s
• Running Time (Motor): 95 s
• Voltage AC/DC: AC/DC 24 V
• Runtime: 95 Secs
• Voltage: 24vac
• Actuator: TFRX24-SR
• Assembly: Assembly
• Fail-Safe: Spring Return
• Connection: NPT
• Valve Type: Regular
• Aux. Switch: 1
• Nema Rating: Nema 2
• Valve Piping: 2-Way
• Feedback Signal: 2-10vdc
• Close-Off Rating: 100 PSI
• Torque: 22 in-lb
• Size: 1/2 in
• Control Signal: Analog
• Body Pressure Rating: 600 psi
• Power Consumption For Wire Sizing: 4 VA
• Degree Of Protection NEMA: NEMA 2
• Enclosure Type: UL Enclosure Type 2
• Ambient Temperature: -22...122 °F [-30...50 °C]
• Protection category: IP42
