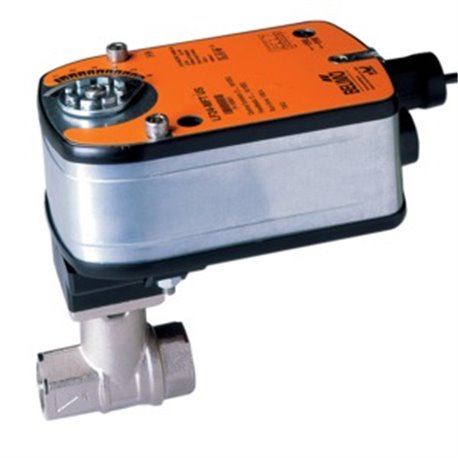

Belimo B209+LF24-S | CCV | 0.5 | 2 Way | 0.8 Cv | w/ Spg Rtn | 24V | On/Off | SW

Product Description

The Belimo B209+LF24-S is a two-way control valve designed for reliable flow control. With a valve size of 0.5 inches and a Cv rating of 0.8, it effectively manages chilled or hot water applications. This valve features a spring return actuator and operates on 24V power, making it suitable for various HVAC setups.

• Spring return actuator for reliable performance
• Compatible with chilled or hot water with up to 60% glycol
• Compact size and easy installation for efficient system integration

Product Highlights

The Belimo B209+LF24-S is ideal for applications that require precise flow control and is equipped with a one auxiliary SPDT switch for added functionality.

Product Information

Standard Information

• Brand: Belimo
• Product Name: B209+LF24-S

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• Cv: 0.8
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: No
• Trim Material: Stainless steel
• Valve Size: 0.5 inches
• Actuator Type: Spring return
• Auxiliary Switches: 1 x SPDT
• Degree of Protection: IP54 NEMA2
• Electrical Connection: Cable
• Power Consumption (Holding): 2.5 W
• Power Consumption (Running): 5 W
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 75 seconds / 90 degrees
• Voltage: AC/DC 24 V
