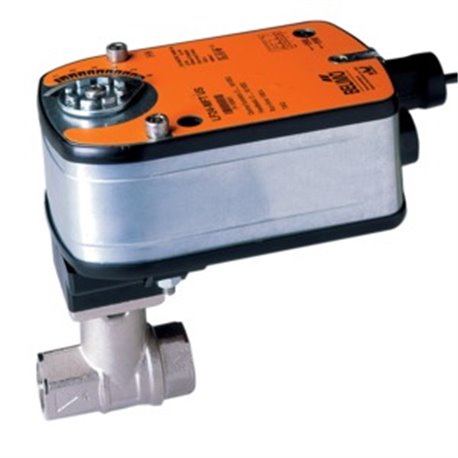

Belimo B209+LF24-MFT CCV 0.5 2 Way 0.8 Cv w/ Spg Rtn 24V MFT

Product Description

The Belimo B209+LF24-MFT is a two-way control valve designed for reliable operation in HVAC systems. It features a flow coefficient (Cv) of 0.8, making it suitable for various applications involving chilled or hot water. The unit operates on a voltage of 24V and utilizes a spring-return actuator for quick response time.

• Designed for chilled or hot water systems with up to 60% glycol.
• Compact valve size of 0.5 inches for minimal space requirements.
• Simple installation with internal thread end fitting.

Product Highlights

This valve is ideal for energy-efficient temperature control, allowing precise modulation of fluid flow.

Product Information

Standard Information

• Brand: Belimo
• MPN: B209+LF24-MFT

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• Cv: 0.8
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: NO
• Trim: Stainless steel
• Valve Size: 0.5 inches
• Actuator Type: Spring return
• Degree of Protection: IP54 NEMA 2
• Electrical Connection: Cable
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 150 seconds for 90 degrees
• Voltage AC/DC: AC/DC 24 V
