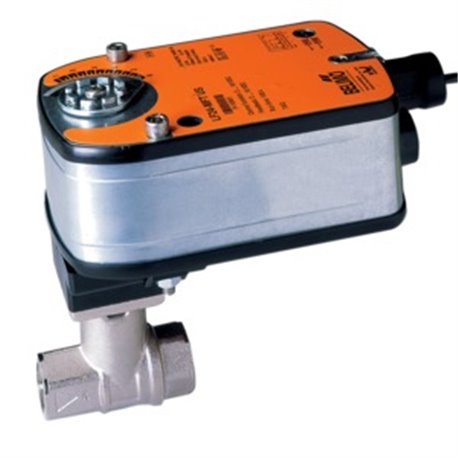

Belimo B209+LF24-3 | CCV | 0.5 | 2 Way | 0.8 Cv | w/ Spg Rtn | 24V | Floating

Product Description

Belimo B209+LF24-3 is a control valve designed to manage the flow of chilled or hot water with up to sixty percent glycol. The valve utilizes a spring return actuator for efficient operation. This valve has a Cv of 0.8, making it suitable for various applications in HVAC systems.

• Applicable for water systems with a range of fluid types.
• Provides a two-way flow pattern for precise control.
• Features IP54 NEMA 2 degree of protection for durability.

Product Highlights

This valve is ideal for both chilled and hot water applications, ensuring reliable performance and ease of installation.

Product Information

Standard Information

• Brand: Belimo
• MPN: B209+LF24-3

Technical Specifications

• Valve Size: 0.5 inches (15)
• Angle of Rotation: 90 degrees
• Pattern: 2-way
• Cv: 0.8
• Fluid: Chilled or hot water up to 60% glycol
• End Fitting: Internal thread
• Actuator Type: Spring return
• Voltage AC/DC: AC/DC 24V
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 150 seconds / 90 degrees
• Degree of Protection: IP54 NEMA 2
• Controllable Flow Range: 75B0
• Pressure Independent: No
• Trim: Stainless steel
