Belimo B209 CCV, 2 Way, 1/2 In NPT, 0.8 Cv

Product Description

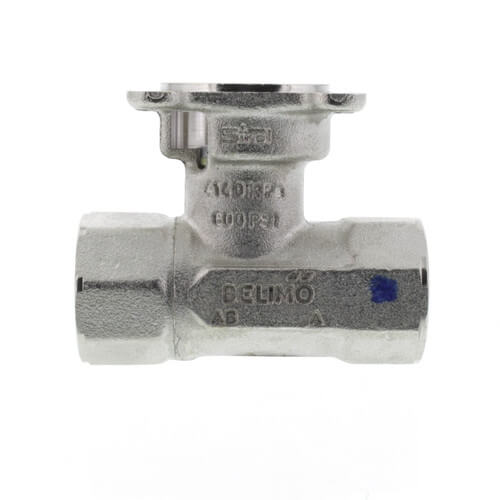

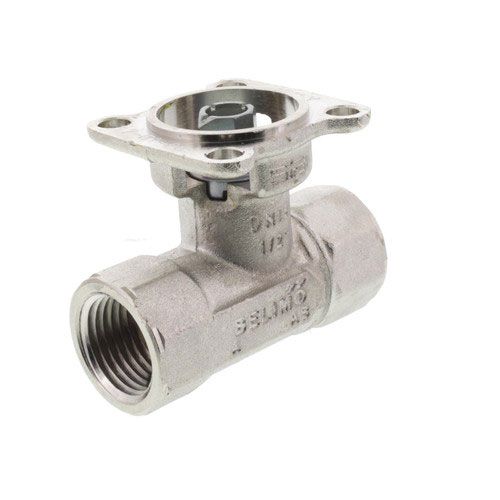

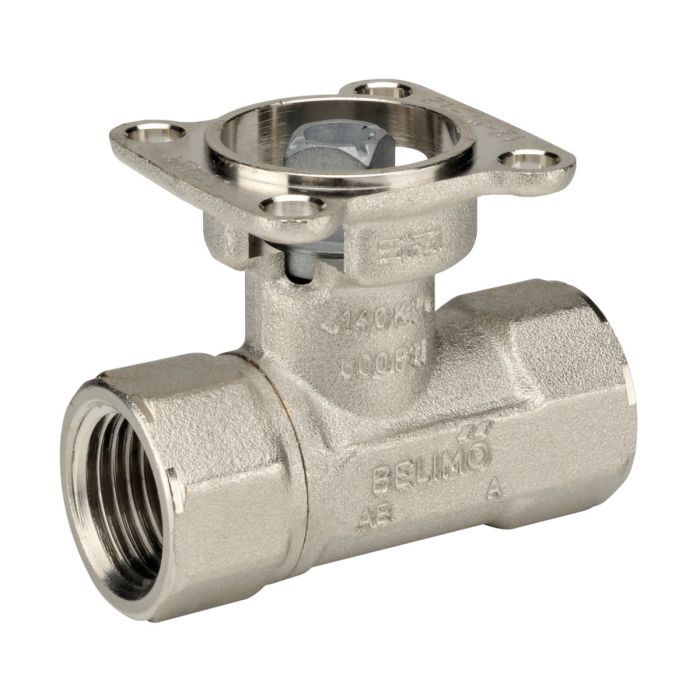

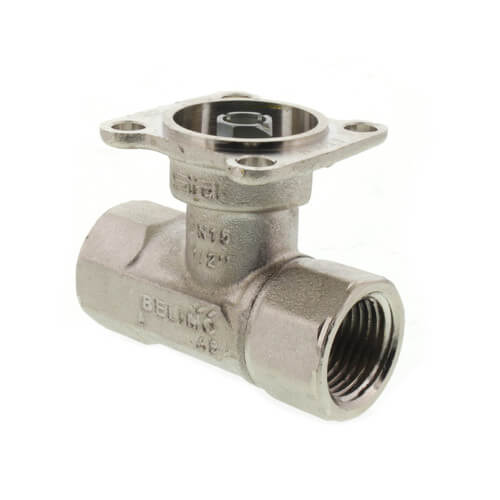

The Belimo B209 is a characterized control valve designed for heating and cooling applications. This valve operates as a two-way, half-inch NPT valve with a flow capacity of zero point eight Cv. It features a forged brass body with a stainless steel ball and stem, ensuring durability and reliability in water systems.

• Suitable for hydronic systems with variable flow.
• Self-cleaning ball valve design minimizes leakage.
• Rated for water temperatures up to two hundred fifty degrees Fahrenheit.

Product Highlights

The B209 valve excels in air handling units and fan coil units, providing controlled flow for efficient HVAC systems.

Product Information

Standard Information

• Brand: Belimo
• MPN: B209

Technical Specifications

• Flow Characteristic: Equal Percentage
• Operating Conditions: Zero F to two hundred fifty F (- eighteen C to one hundred twenty C)
• Close-Off Pressure: Two hundred psi
• Fluid Compatibility: Chilled and hot water, up to sixty percent glycol
• Controllable Flow Range: seventy five B0
• Trim Material: Stainless steel
• Valve Size: Half inch
• End Fitting: Internal thread
