Belimo B208B+LF24-S | CCV | 0.5 | 2 Way | 0.46 Cv | w/ Spg Rtn | 24V | On/Off | SW | Belimo

Product Description

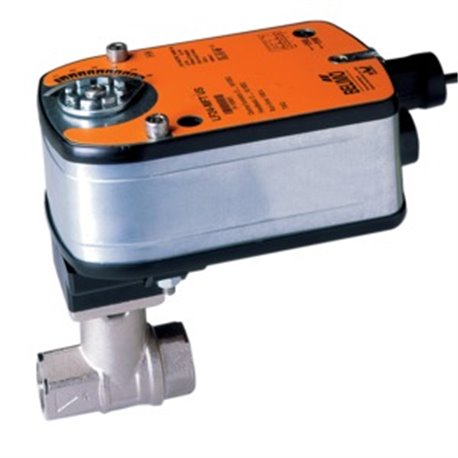

The Belimo B208B+LF24-S is a compact control valve designed for precise fluid regulation. Ideal for HVAC systems, it operates on a voltage of twenty-four volts, providing reliable on/off control of chilled or hot water systems with up to sixty percent glycol. This two-way valve features a flow coefficient (Cv) of zero point forty-six, making it suitable for diverse applications in various environments.

• Spring return actuator for reliable operation
• Internal thread end fitting for easy connection
• IP54 NEMA2 degree of protection for enhanced durability

Product Highlights

This valve ensures efficient fluid control in HVAC systems and is compatible with standard electrical configurations.

Product Information

Standard Information

• Brand: Belimo
• MPN: B208B+LF24-S

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• Cv: 0.46
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: No
• Trim: Chrome plated brass
• Valve Size: 0.5 inches
• Actuator Type: Spring return
• Auxiliary Switches: 1 x SPDT
• Degree of Protection: IP54 NEMA2
• Electrical Connection: Cable
• Power Consumption (Holding): 2.5 W
• Power Consumption (Running): 5 W
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 75 seconds / 90 degrees
• Voltage AC/DC: AC/DC 24 V
