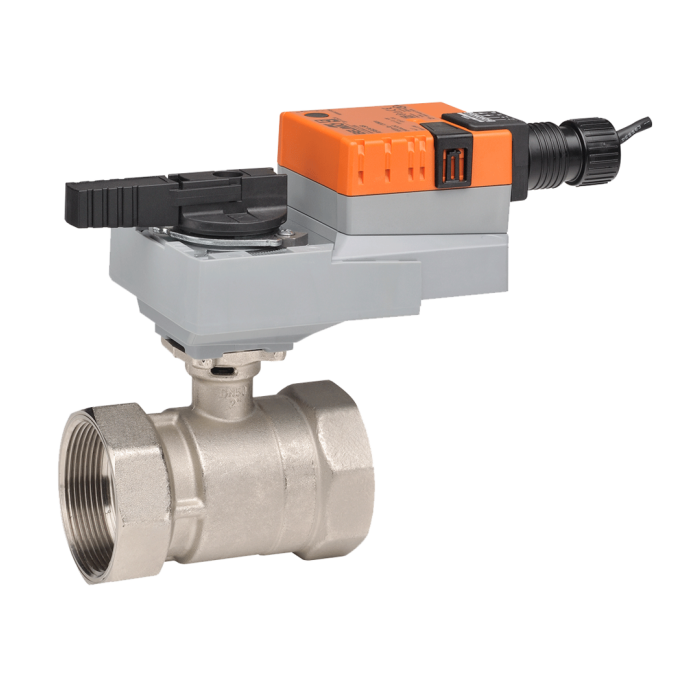

Belimo B208+LRX24-MFT CCV Assembly 2 Way 1/2 in NPT 0.46 Cv

Product Description

The Belimo B208+LRX24-MFT is a characterized control valve. This valve is designed for use in air handling units including heating or cooling coils, and fan coil units. The valve is suitable for hydronic systems with variable flow and is known for its durable construction.

• Ball valve design offers self-cleaning and zero leakage.
• Rated for water temperatures up to 250 F.
• Maintenance free with no repacking needed after extended service.

Product Highlights

This valve features modulating technology with a direct coupled actuator for precise control.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B208+LRX24-MFT

Technical Specifications

• Housing: NEMA 2, IP54, UL Enclosure Type 2
• Service: Chilled, hot water, up to 60% glycol
• Power Consumption: 2.5 W running, 1.2 W holding
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal percentage
• Operating Conditions: -22 F to 122 F (-30 C to 50 C)
• Electrical Connection: 18 GA plenum rated cable with 1/2 in conduit connector
