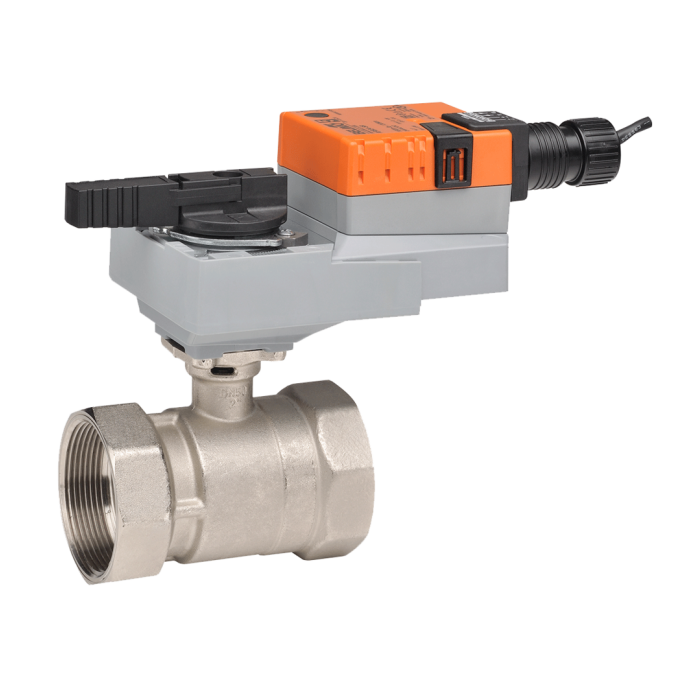

Belimo B208+LRB120-3 CCV Assembly 2 Way 1/2 in. NPT 0.46 Cv

Product Description

Belimo B208+LRB120-3 is a characterized control valve suitable for HVAC applications. It features a nickel-plated brass body and stainless steel internals. This valve supports a voltage range of one hundred to two hundred forty volts and operates with an on/off or floating point control method. This product is ideal for managing the flow of chilled or hot water with a glycol content of up to sixty percent.

• Ideal for HVAC systems
• Operates between one hundred and two hundred forty volts
• Floating/3-point actuator control

Product Highlights

This valve is designed for efficient flow control while maintaining durability under various conditions.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B208+LRB120-3

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75 to 100%
• Cv: 0.46
• End Fitting: Internal thread
• Fluid Compatibility: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: No
• Trim Material: Stainless steel
• Valve Size: 0.5 inches [15 mm]
• Actuator Type: Non fail-safe
• Control Type: Floating/3-point
• Degree of Protection: IP54 NEMA2 UL Enclosure Type2
• Voltage AC/DC: AC 100 to 240 V
• Manual Override: External push button
• Power Consumption (Holding): 0.5 W
• Power Consumption (Running): 2 W
• Running Time (Motor): 90 seconds for 90 degrees
