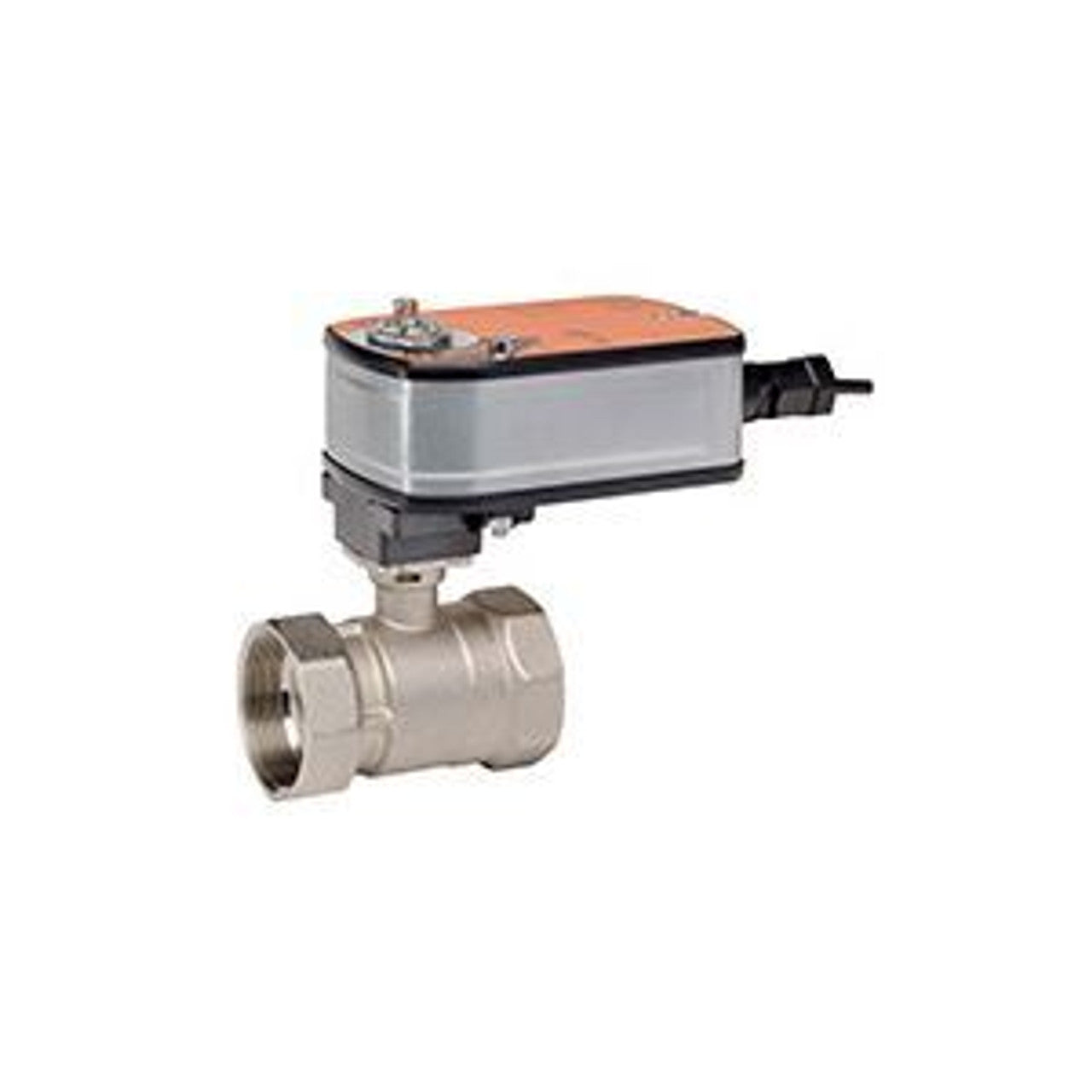

Belimo B208+LF24-S CCV 0.5 2 Way 0.46 Cv w/ Spg Rtn 24V On/Off

Product Description

The Belimo B208+LF24-S is a two-way control valve designed for managing chilled or hot water systems. The valve operates with a spring return actuator and requires a voltage of 24V. It is suitable for both residential and commercial HVAC applications.

• Flow coefficient of 0.46 Cv
• Internal thread fittings for easy installation
• Compatible with fluids up to sixty percent glycol

Product Highlights

This valve is used for precise flow control, making it ideal for HVAC systems. Its design ensures efficient operation in various settings.

Product Information

Standard Information

• Brand: Belimo
• MPN: B208+LF24-S

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• Cv: 0.46
• End Fitting: Internal thread
• Fluid Compatibility: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: No
• Trim: Stainless steel
• Valve Size: 0.5 inches
• Actuator Type: Spring return
• Auxiliary Switches: 1 x SPDT
• Degree of Protection: IP54 NEMA2
• Electrical Connection: Cable
• Power Consumption (Holding): 2.5 watts
• Power Consumption (Running): 5 watts
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 75 seconds / 90 degrees
• Voltage AC/DC: AC/DC 24 volts
