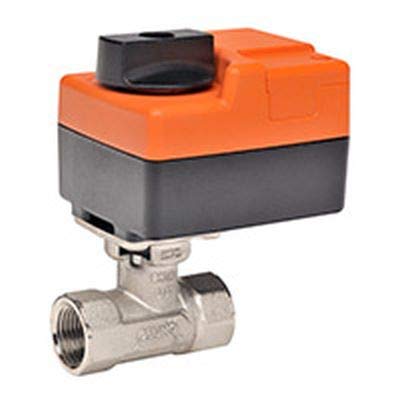

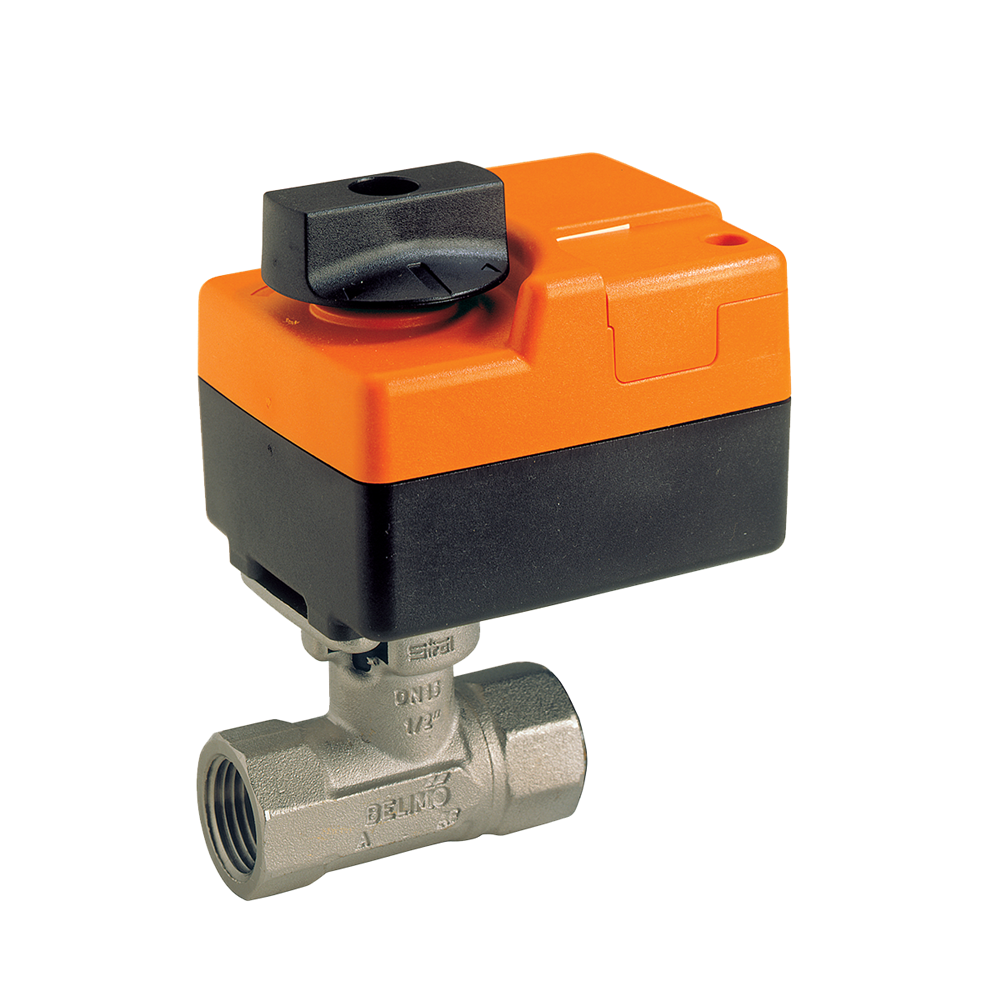

Belimo B207+TR24-3 US Ccv Assembly 2 Way, 1/2 In. Npt, 0.3 Cv

Product Description

The BELIMO B207+TR24-3 US is a characterized control valve assembly. This forged brass, nickel-plated brass body valve features a stainless steel ball and stem, and a non-spring return valve actuator. It operates on 24 VAC and is designed for on/off, floating point control.

• Valve Is Typically Used In Air Handling Units On Heating Or Cooling Coils, And Fan Coil Unit Heating Or Cooling Coils
• Valve Is Suitable In Use In A Hydronic System With Variable Flow
• Ball Valve Design Offers Self-Cleaning And Zero Leakage

Product Highlights

This valve is maintenance-free and rated for water temperatures up to 250 F, making it suitable for various HVAC applications.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: B207+TR24-3 US
• Country of Origin: United States

Technical Specifications

• Housing: NEMA Type 1/ IP40
• Service: Chilled, Hot Water, Up To 60% Glycol
• Power Consumption: 1 W Running
• Close-Off Pressure: 200 psi
• Flow Characteristic: Equal Percentage
• Operating Conditions: -22 F To 122 F (-30 C To 50 C)
• Electrical Connection: 3 ft. 18 GA Plenum Rated Cable
• Angle of Rotation: 90
• Cv: 0.3
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Pressure Independent: NO
• Trim: Stainless steel
• Valve Size: 0.5" [15]
• Actuator Type: Non fail-safe
• Control Type: Floating/3-point
• Degree of Protection: IP40 NEMA 1
• Manual Override: Push down handle
• Running Time (Motor): 90 s / 90B0
• Voltage AC/DC: AC 24 V
• Runtime: 90 Secs
• Voltage: 24vac
• Actuator: TR24-3 US
• Assembly: Assembly
• Fail-Safe: Non-Spring Return
• Connection: NPT
• Valve Type: Regular
• Valve Piping: 2-Way
• Control Signal: On/Off, Floating
