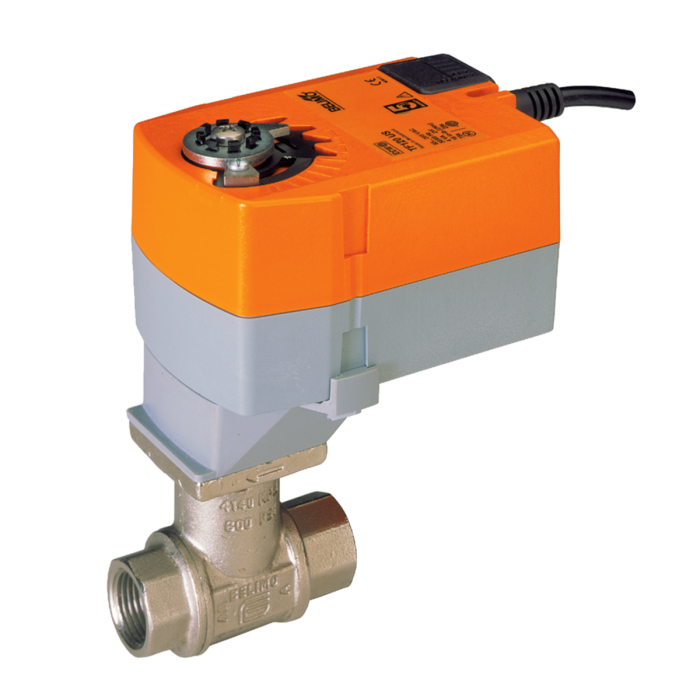

Belimo B207+TFRB24-3-NO Ball Valve 1/2 in

Product Description

The BELIMO B207+TFRB24-3-NO is a ball valve with a 1/2 inch size. It features an equal percentage flow and a female NPT threaded connection. The valve has a 0.3 CV and a 200 psi close-off pressure with stainless steel trim and an electric actuator. It operates at 24 V with spring return and on/off control.

• Equal percentage characteristic (2-way)
• Large Cv range from 0.8 to 170
• Assembled, ready for installation

Product Highlights

This ball valve is designed for air handling units on heating or cooling coils and is suitable for hydronic systems with variable flow.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: B207+TFRB24-3-NO

Technical Specifications

• Torque: 22 in-lb
• Type: Assembly
• Connection: FNPT
• Cv: 0.3 CV
• Fail-Safe: Spring Return
• Supply Voltage (Nominal): 24 VAC
• Trim Material: Stainless Steel
• Pattern: 2-way
• Size: 1/2 in
• Control Signal: Two Position,Floating
• Fluid: Chilled or hot water, up to 60% glycol
• Body Pressure Rating: 600 psi
• End Fitting: Internal thread
• Valve Size: 0.5" [15]
• Voltage AC/DC: AC/DC 24 V
• Power Consumption (Running): 2.5 W
• Power Consumption (Holding): 1.3 W
• Power Consumption For Wire Sizing: 5 VA
• Control Type: On/Off
• Degree Of Protection NEMA: NEMA 2
• Enclosure Type: UL Enclosure Type 2
• Service: Chilled, Hot Water, Up To 60% Glycol
• Flow Characteristic: Equal Percentage
• Operating Conditions: -22 F To 122 F (-30 C To 50 C)
• Close-Off Pressure: 200 psi
• Power Consumption: 2.5 W Running, 1 W Holding
• Electrical Connection: 3 ft. 18 GA Appliance Cable With 1/2 in. Conduit Connector
• Housing: NEMA 2, IP42, UL Enclosure Type 2
