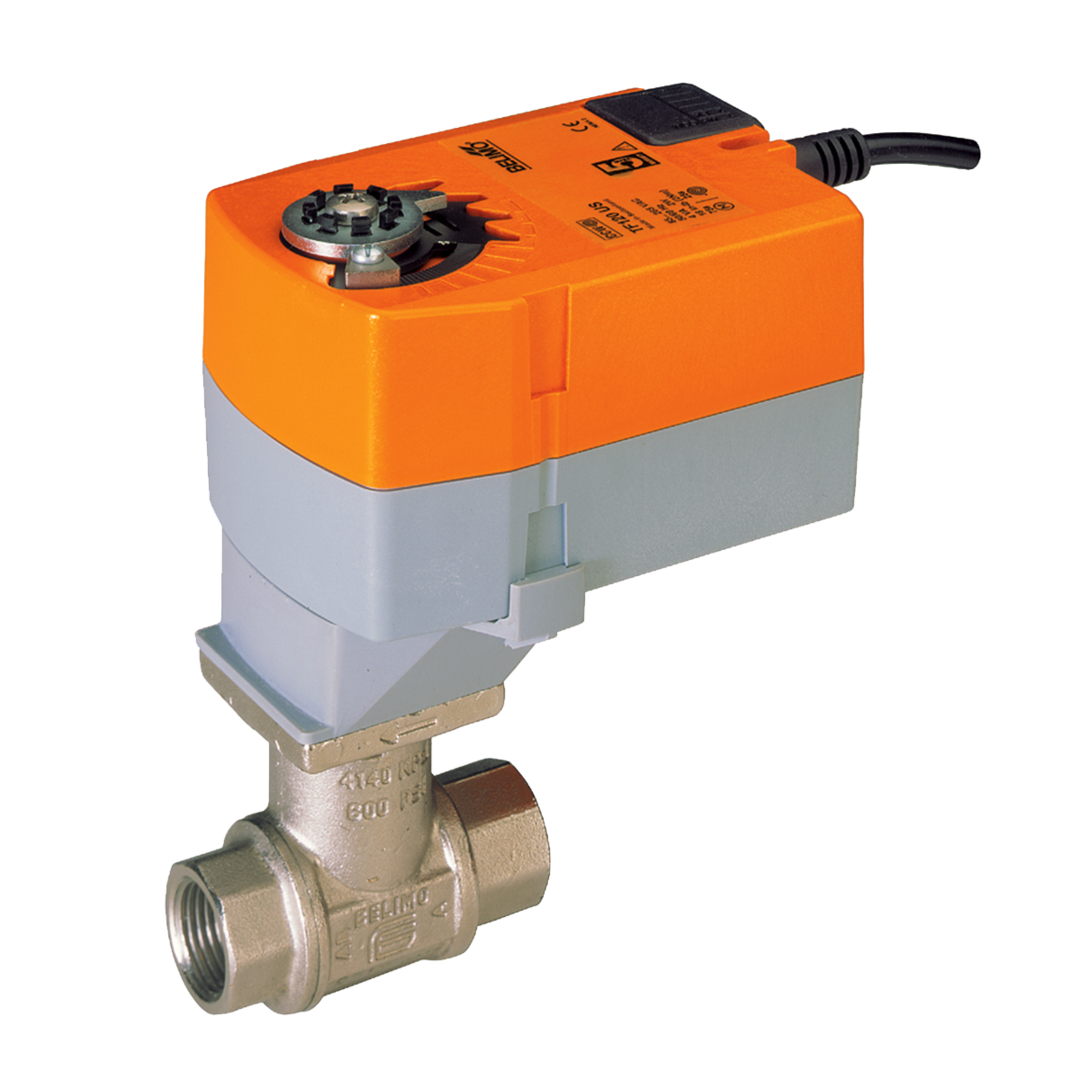

Belimo B207+TFRB24-3 CCV Assembly 2 Way 1/2 in. NPT 0.3 Cv

Product Description

The Belimo B207+TFRB24-3 is a characterized control valve designed for HVAC systems. This unit features a forged brass body and a stainless steel ball and stem. It operates as a two-way valve and is ideal for heating and cooling applications.

• The valve is suitable for variable flow in hydronic systems.
• It provides self-cleaning features and prevents leakage.
• Maintenance-free operation eliminates the need for repacking.

Product Highlights

This valve is commonly used in air handling units and fan coil units.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B207+TFRB24-3

Technical Specifications

• Valve Size: 0.5 inches
• Flow Characteristic: Equal Percentage
• Operating Conditions: -22 F to 122 F
• Close-Off Pressure: 200 psi
• Power Consumption: 2.5 W running, 1 W holding
• Electrical Connection: 3 ft. 18 GA appliance cable with 1/2 in. conduit connector
• Trim Material: Stainless steel
• Degree of Protection: IP42 NEMA 2 UL Enclosure Type 2
