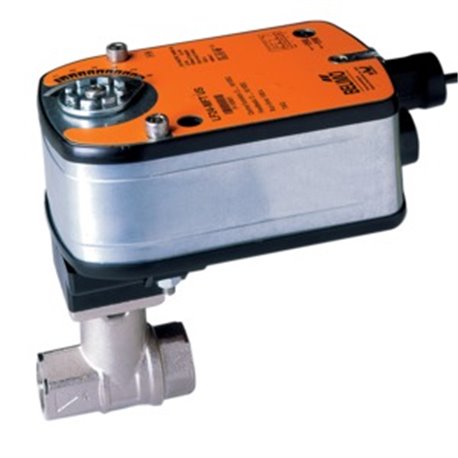

Belimo B207+LF120 CCV 0.5 2 Way 0.3 Cv w/ Spg Rtn 120V On/Off

Product Description

The Belimo B207+LF120 is a reliable control valve designed for efficient regulation of flow in HVAC systems. This unit operates with a voltage of one hundred twenty volts and features a two-way design with a flow coefficient (Cv) of zero point three. It is suitable for use with chilled or hot water applications containing up to sixty percent glycol.

• Two-way valve design
• Operates on 120V with spring return actuator
• Compatible with various fluid types

Product Highlights

This control valve is crafted from stainless steel, ensuring durability and long service life. It contributes to the efficient management of heating and cooling systems by allowing precise flow control.

Product Information

Standard Information

• Brand: Belimo
• MPN: B207+LF120

Technical Specifications

• Valve Size: 0.5 inches
• Pattern: 2-way
• Angle of Rotation: 90 degrees
• End Fitting: Internal thread
• Fluid Compatibility: Chilled or hot water up to 60% glycol
• Pressure Independent: No
• Trim Material: Stainless steel
• Actuator Type: Spring return
• Degree of Protection: IP54 NEMA2
• Electrical Connection: Cable
• Power Consumption (Running): 5.5 W
• Voltage: AC120V
