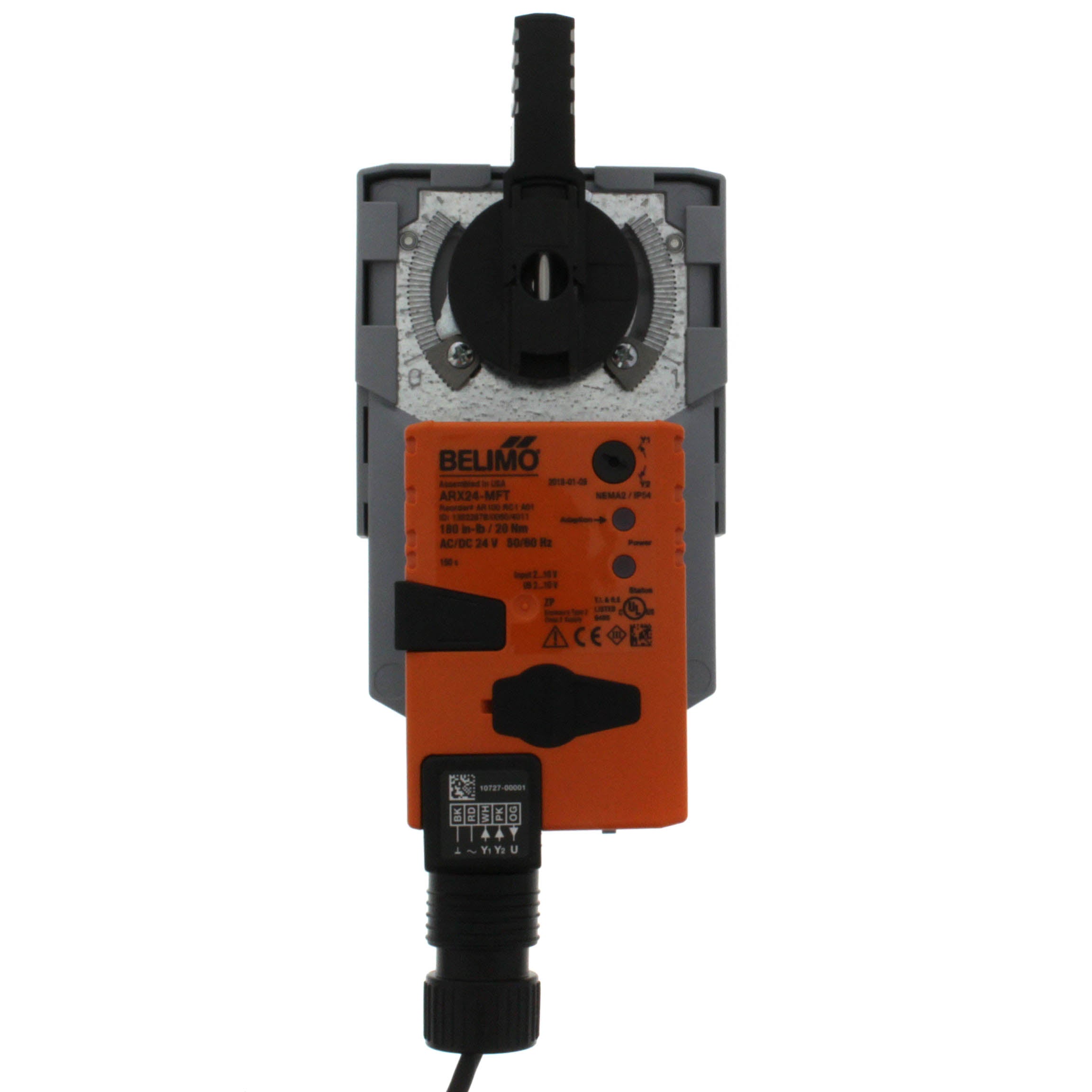

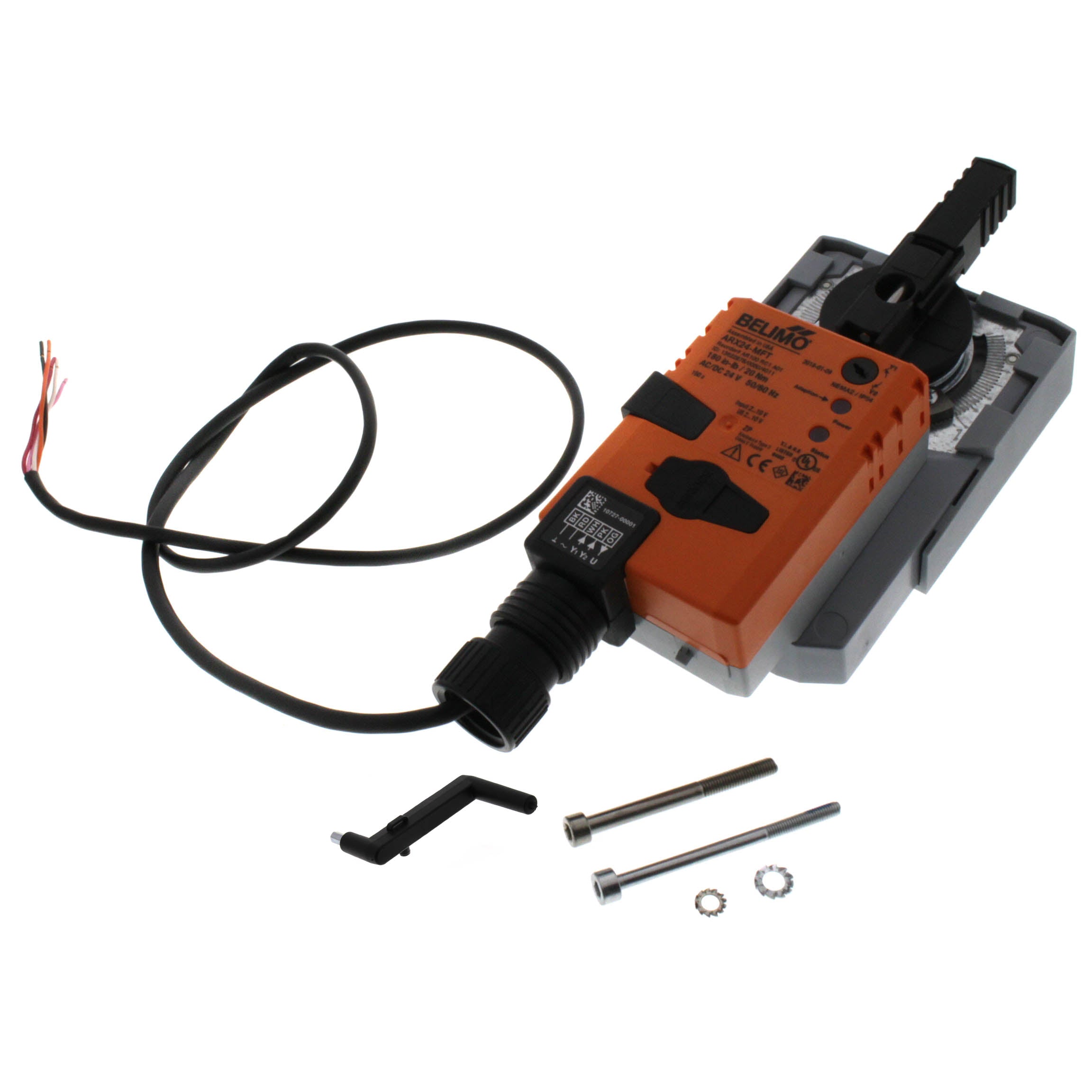

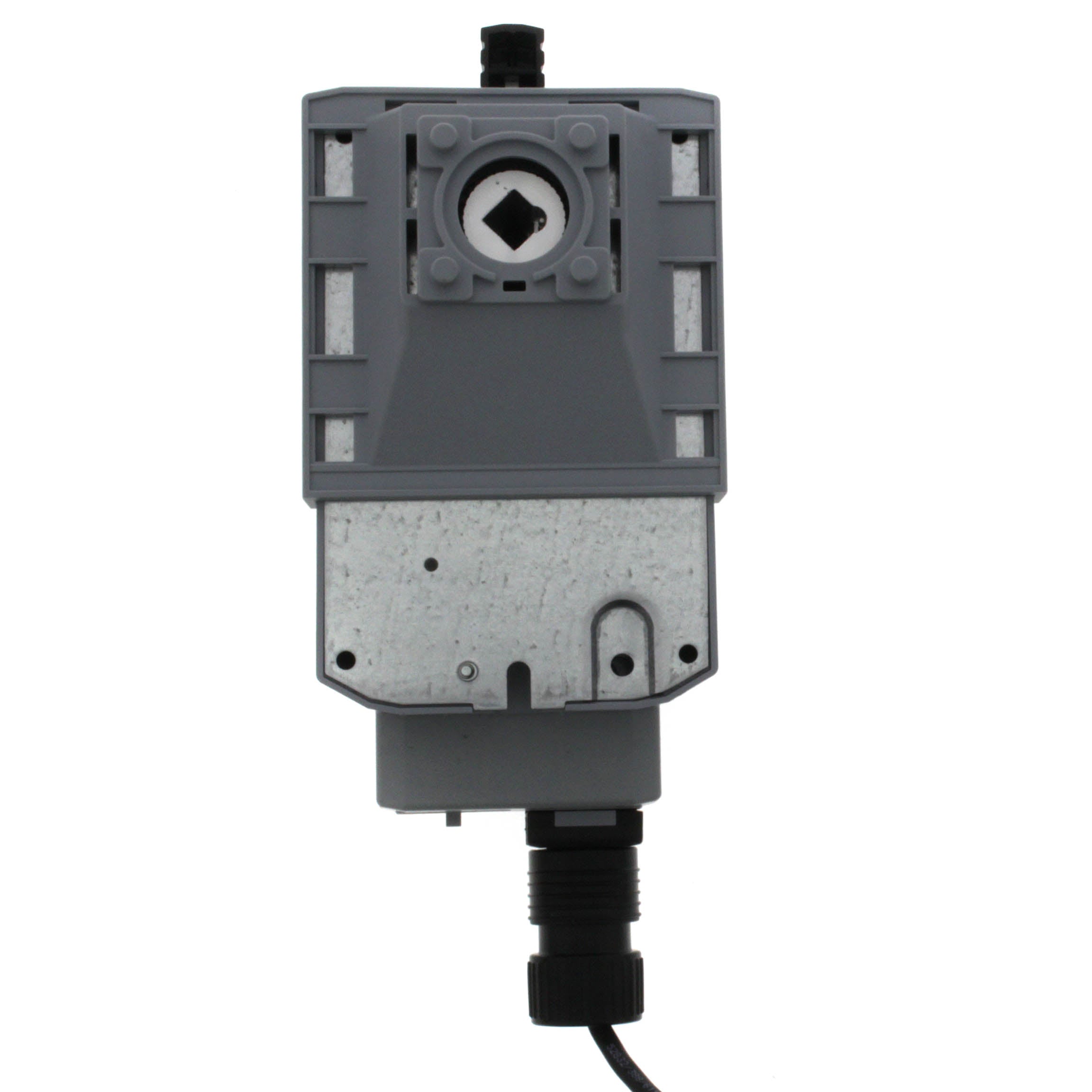

Belimo ARX24-MFT Direct Coupled Actuator, 180 in-lb

Product Description

The Belimo ARX24-MFT is a direct coupled actuator that operates on 24VAC power. It features a robust torque capacity of 180 inch-pounds. This actuator utilizes multi-function technology, making it suitable for a variety of HVAC applications.

• Non-spring return design.
• Brushless DC motor technology that enhances durability.
• Environmentally friendly operation with low power consumption.

Product Highlights

This actuator is ideal for HVAC systems requiring precise control of dampers and valves. It supports a wide temperature range and is built to withstand harsh conditions.

Product Information

Standard Information

• Power Supply: 24 VAC ± 20%, 50/60 Hz, 24 VDC ± 10%
• Warranty: 5 years

Technical Specifications

• Torque: 180 in-lb
• Power Consumption: 3.5 W running, 1.3 W holding
• Temperature Range: -22 °F to 122 °F
• Electrical Connection: 18 GA plenum rated cable with 1/2 in. conduit connector
• Protection Rating: NEMA 2, IP54
• Running Time: Variable, default 150 seconds
• Angle of Rotation: 90°
