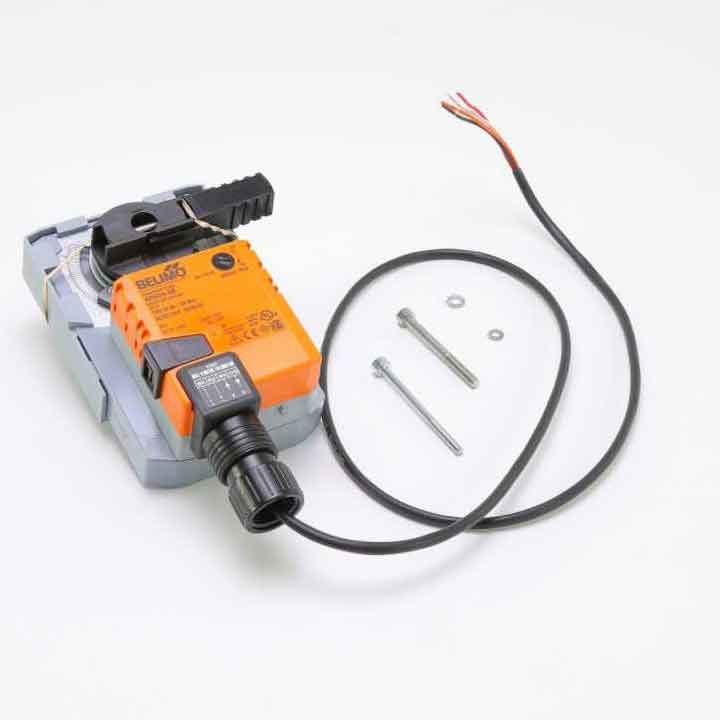

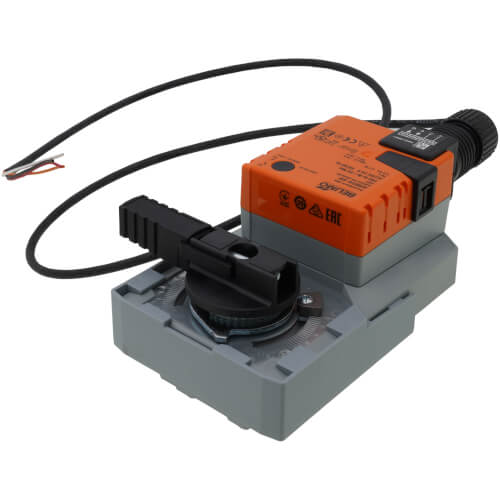

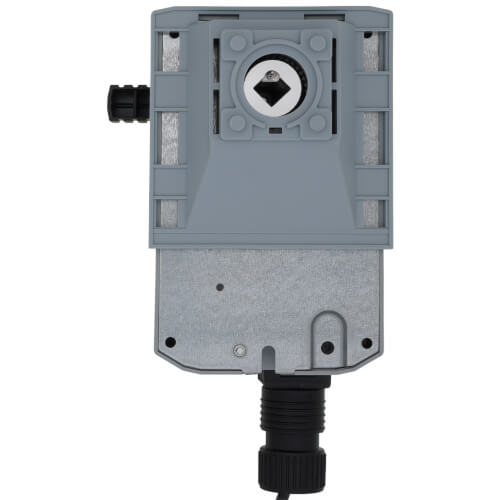

Belimo ARB24-SR Direct Coupled Actuator, 180 in-lb

Product Description

The Belimo ARB24-SR is a non-spring return actuator providing 180 in-lb of torque. It operates on 24 VAC and can be controlled with a 2 to 10 VDC or 4 to 20 mA control signal. This actuator is suitable for various HVAC applications, ensuring efficient performance and reliability.

• Compatible with 2 to 10 VDC or 4 to 20 mA control signals
• Operating temperature range from -22°F to 122°F
• Power consumption of 2.5 W running and 0.4 W holding

Product Highlights

Utilizing innovative brushless DC motor technology, the Belimo ARB24-SR ensures long-lasting performance beyond its 5-year warranty. It guarantees consistent torque throughout its specified operational range, making it ideal for precise control in HVAC systems.

Product Information

Standard Information

• Brand: Belimo
• MPN: ARB24-SR

Technical Specifications

• Housing: NEMA 2, IP54
• Power Supply: 24 VAC ± 20%, 50/60 Hz, 24 VDC ± 10%
• Power Consumption: 2.5 W running, 0.4 W holding
• Electrical Connection: 3 ft., 18 GA plenum cable with 1/2 in. conduit connector
• Angle of Rotation: 90°
• Direction of Rotation: Reversible with built-in switch
• Noise Level: <45 dB(A)
• Agency Listings: cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2004/108/EC
