Product Description

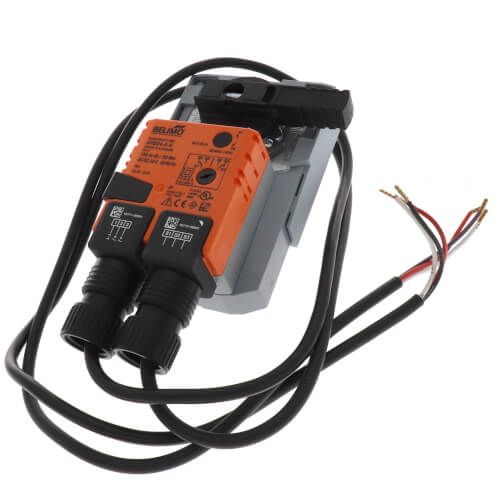

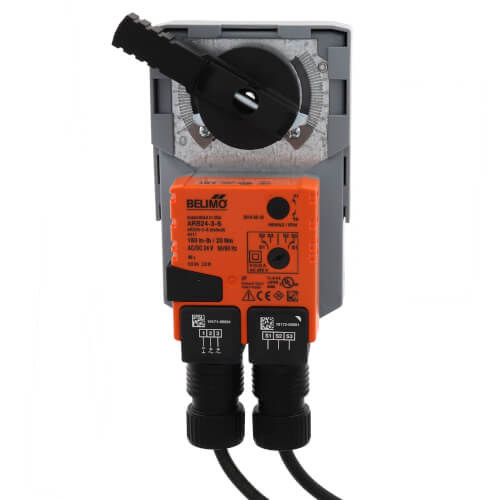

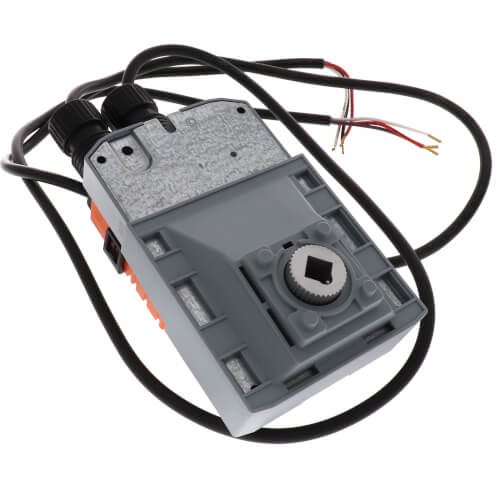

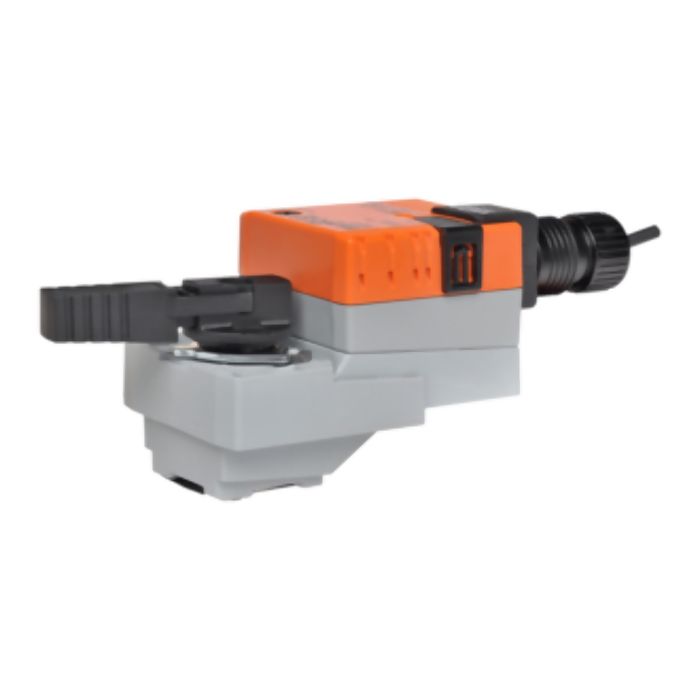

Designed for reliable performance, the Belimo ARB24-3-S is a compact actuator for on/off and floating point control, featuring a non-spring return mechanism and an auxiliary switch. This 24 VAC/DC unit provides effective operation with a torque of 180 inch-pounds.
- Compact and robust design suitable for various applications
- Non-spring return functionality ensures dependable operation
- Integrated auxiliary switch enhances control flexibility
Product Highlights
This actuator is perfect for use in HVAC systems requiring precise valve and damper control. It operates efficiently within an angle rotation of 90 degrees and features an electrical connection by cable. The protection category is IP54, indicating a good level of protection against dust and moisture.
Product Information
Standard Information
-
Brand: Belimo
-
MPN: ARB24-3-S
Technical Specifications
-
Control Type: Floating/3-point
-
Actuator Type: Non fail-safe
-
Voltage AC/DC: AC/DC 24 V
-
Angle of Rotation: 90
-
Auxiliary Switches: 1 x SPDT
-
Degree of Protection: IP54 NEMA 2
-
Running Time (Motor): 90 seconds
-
Power Consumption: 0.5 W (holding), 2.5 W (running)
