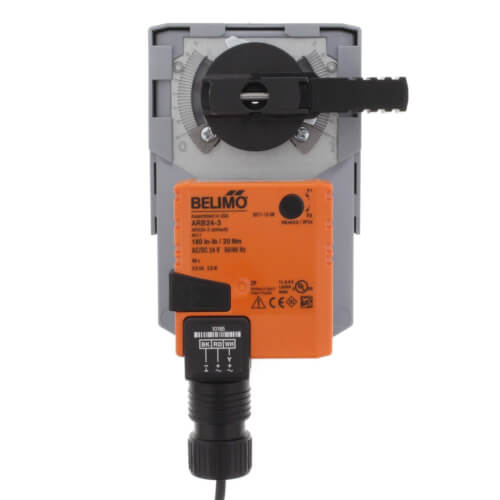

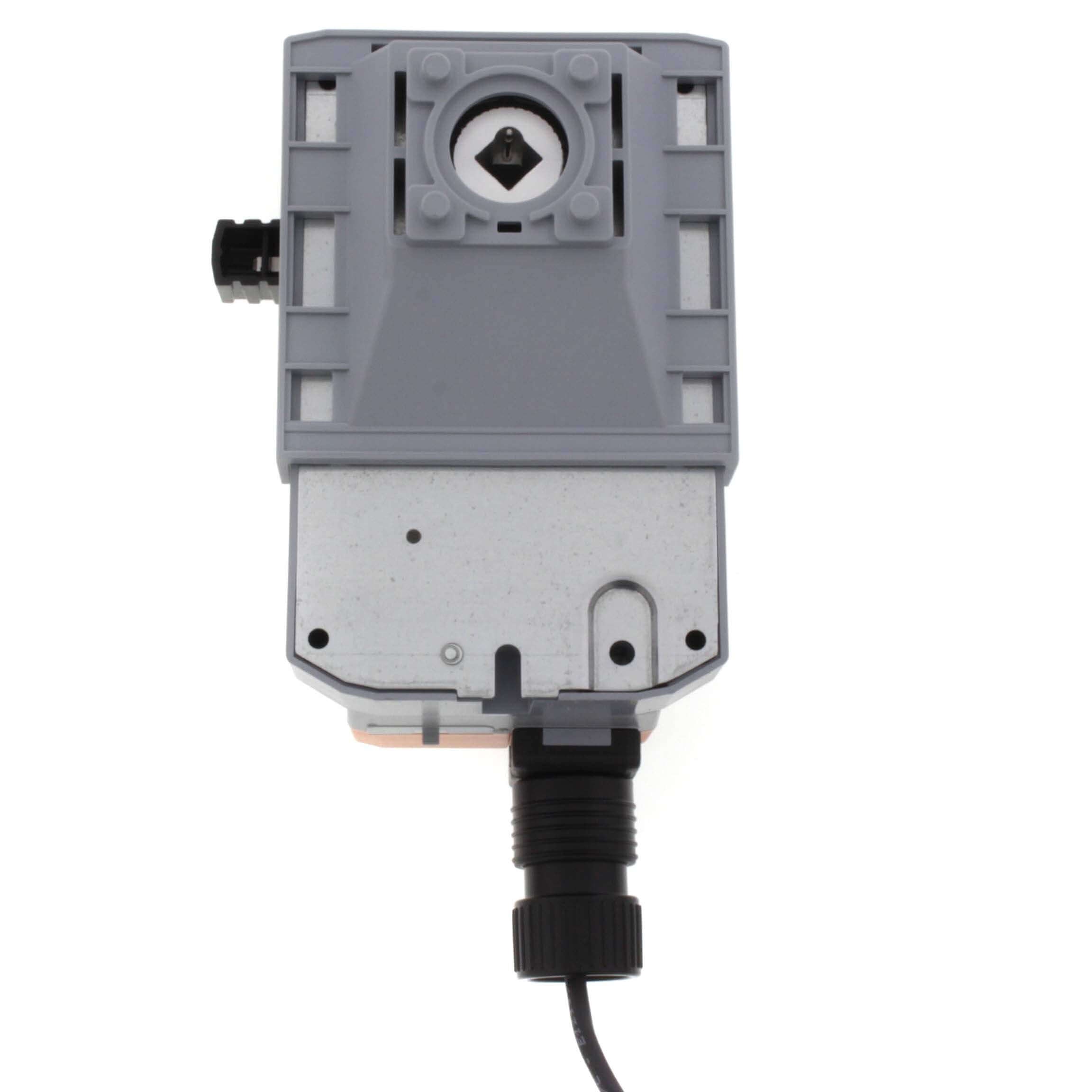

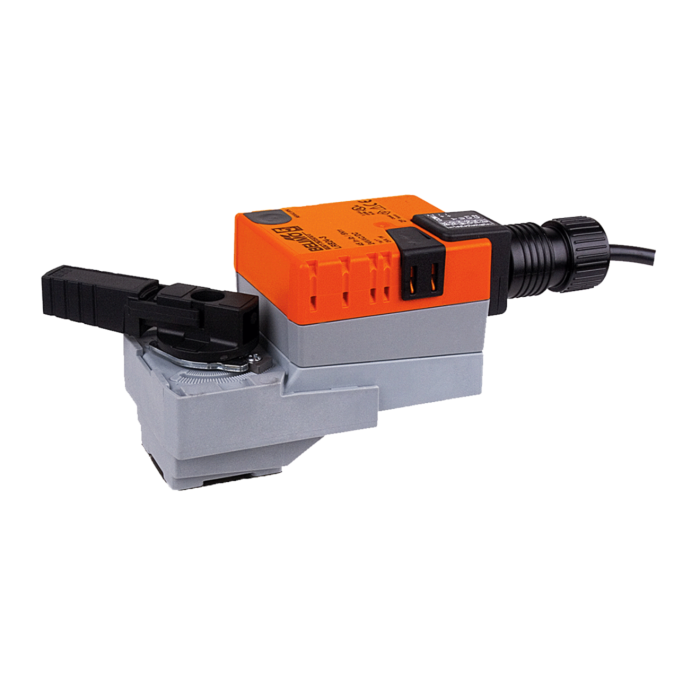

Belimo ARB24-3 Non-Spring Return On/Off Floating Point Control Actuator 24V

Product Description

Belimo ARB24-3 is a direct coupled actuator with a torque rating of 180 inch-pounds. It is designed for on/off and floating point control applications. This actuator operates with a power supply of twenty-four volts AC/DC, ensuring reliable performance in various conditions. The unit is non-spring return which simplifies the installation process.

• Operating temperature range of -22 degrees Fahrenheit to 122 degrees Fahrenheit (-30 degrees Celsius to 50 degrees Celsius).
• Power consumption of 2.5 watts while running and 0.5 watts while holding.
• Includes a three-foot, 18-gauge plenum cable with a half-inch conduit connector.

Product Highlights

Product Information

Standard Information

• Brand: Belimo
• MPN: ARB24-3

Technical Specifications

• Actuator Type: Non fail-safe
• Control Type: Floating/3-point
• Angle of Rotation: 90 degrees
• Degree of Protection: IP54
• Electrical Connection: 3 ft., 18 GA plenum cable with 1/2 inch conduit connector
• Power Consumption: 2.5 W running, 0.5 W holding
• Operating Conditions: -22 degrees Fahrenheit to 122 degrees Fahrenheit
• Running Time: 90 seconds
