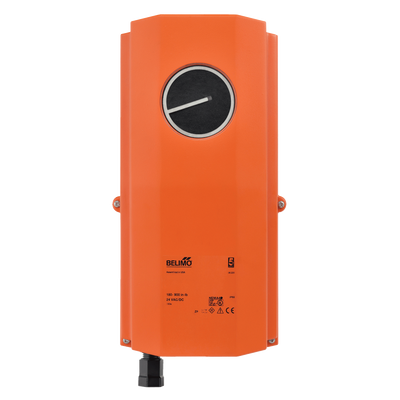

Belimo AMX24-SR-T-N4 Damper Actuator 160 in-lb Non-Spring Return 24V Modulating NEMA 4

Product Description

The Belimo AMX24-SR-T-N4 is a robust damper actuator designed for HVAC systems requiring reliable non-spring return functionality. Engineered for precision control, this device offers 160 in-lb torque and operates on 24V for efficient modulating control.

• IP66/67 and NEMA 4X rated, ensuring protection against dust, water, and corrosion.
• Features a 95-degree angle of rotation for comprehensive coverage.
• Includes an external push button for manual override, enhancing operational flexibility.

Product Highlights

This damper actuator is designed to resist harsh conditions while providing precise airflow management in HVAC systems. It operates efficiently with a power consumption of 3.5W during run and 1.25W when holding.

Product Information

Standard Information

• Brand: Belimo
• MPN: AMX24-SR-T-N4

Technical Specifications

• Torque: 180 in-lb
• Voltage: AC/DC 24V
• Control Type: DC 2...10 V
• Protection Degree: IP66/67, NEMA 4X
• Electrical Connection: Terminals
• Manual Override: External push button
• Running Time: 90s / 90B0
• Safety Function: NO
