Belimo AMX24-MFT-X1 Non-Spring Return Control Valve Actuator

Product Description

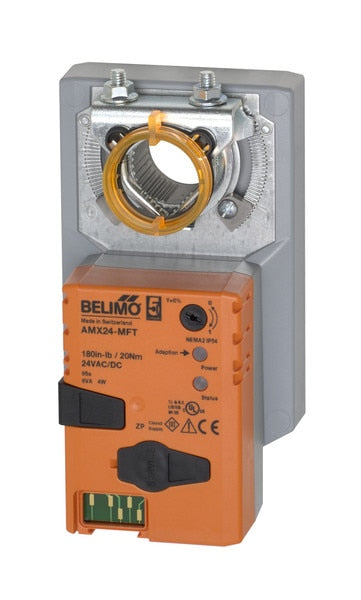

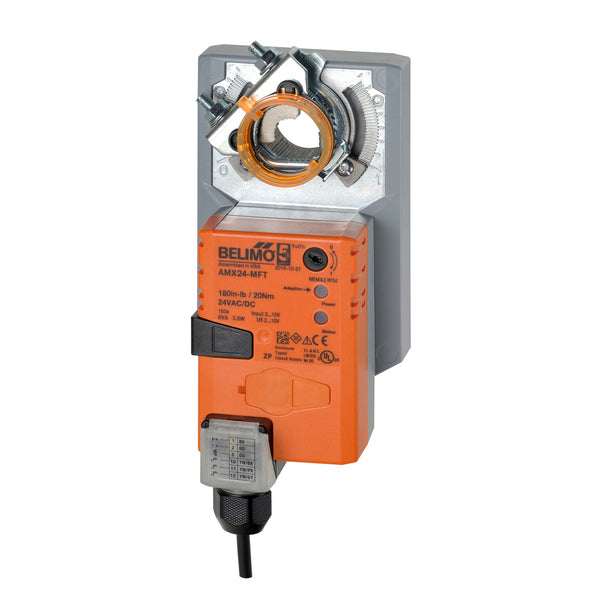

The Belimo AMX24-MFT-X1 is a non-spring return control valve actuator with linkage mount. It operates on 24VAC/DC and delivers 180 in-lb of torque. It features a programmable control input and feedback signal, along with a variable run time with a 150-second default. It is designed for damper control and valve control in Building Automation Systems, BAS, or HVAC environments.

• Non Fail-Safe
• 24VAC/DC
• MFT Programmable

Product Highlights

This actuator includes a manual release mechanism for manual override and a reversing switch for control flexibility.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: AMX24-MFT-X1

Technical Specifications

• Voltage AC/DC: AC/DC 24 V
• Power Consumption (Running): 3.5 W
• Power Consumption (Holding): 1.3 W
• Power Consumption For Wire Sizing: 6 VA
• Control Type: MFT/Programmable
• Direction Of Motion Motor: selectable with switch 0/1
• Manual Override: External push button
• Angle of Rotation: 95°
• Running Time (Motor): 150 s / 90°
• Protection category: IP54
• Degree Of Protection NEMA: NEMA 2
• Enclosure Type: UL Enclosure Type 2
• Ambient Temperature: -22...122°F [-30...50°C]
• Actuator Type: Non Fail-Safe
• Voltage: 24VAC/DC
• Control Signal: Analog
• Auxillary Switch: None
• NEMA 4X Enclosure: No
• Torque: 180 in-lb
• Supply Voltage (Nominal): 24 VAC
• Supply Voltage: 24 VAC ±20% 50/60 Hz, 24 VDC ±10%, 100 VAC, 240 VAC
• Motor: Brushless DC
• Wiring: 3' (0.9 m) plenum cable, 18 AWG, terminals
• Action: Non-spring return
• Rotation: 95 degrees, Rev. with switch
• Noise: <45 db @ 3' (1m); <35 db @ 3' (1m) (LMB models)
• Resolution: 100 steps
• Life Expectancy: 100,000 cycles, 1 million repositions
• Operating Temperature: -22° to 122°F (-30° to 50°C)
• Operating Humidity: 5 to 95% RH
• Approvals: UL94-5VA
• Warranty: 5 years
• Running Time range (Motor): 90...350 s
