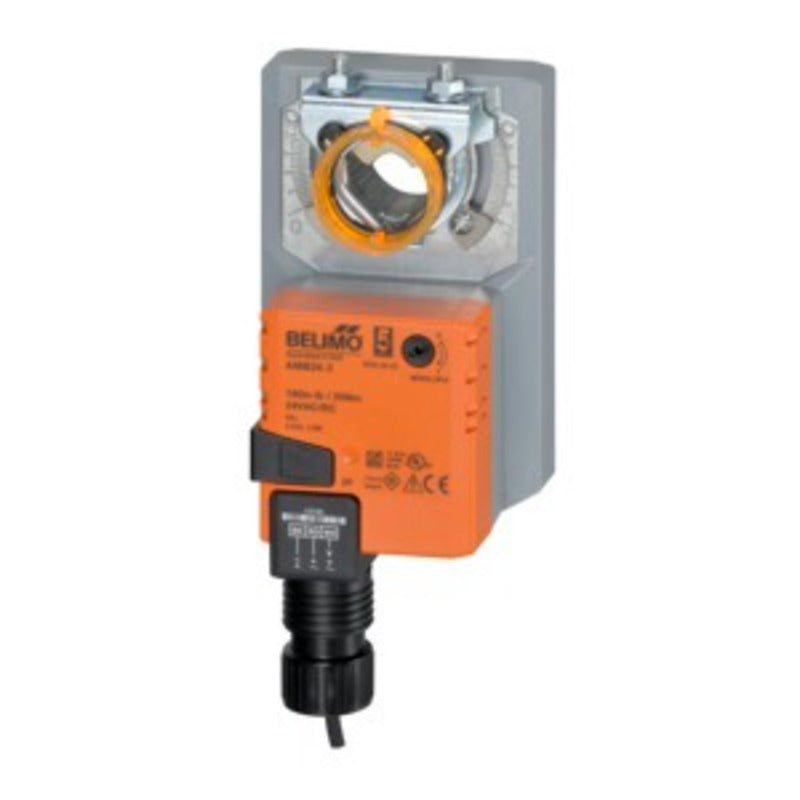

Belimo AMX24-MFT Damper Actuator 180 In-lb 24V Mft

Product Description

The BELIMO AMX24-MFT is a non-spring-return damper actuator designed for use in commercial and industrial HVAC air-handling systems. It delivers 180 inch-pounds of torque, making it suitable for medium to large damper assemblies where reliable, repeatable positioning is required. The actuator operates on 24 VAC or 24 VDC power and accepts an analog Multi-Function Technology (MFT) control signal, allowing field configuration of input and output signal ranges. It draws 6 VA at rated supply voltage. Licensed HVAC technicians and building automation controls technicians are the primary installers.

This actuator is used in commercial air-handling units, mixing boxes, and ventilation damper applications where precise analog modulation is required. The MFT signal platform supports a wide range of control input types, making the AMX24-MFT adaptable to various building automation system (BAS) controllers and DDC environments. It is suited for both new construction and retrofit applications in commercial HVAC systems where non-spring-return operation is appropriate.

Key Features

• 180 inch-pounds of torque for medium to large damper blades
• Non-spring-return design holds last position on power loss
• Operates on 24 VAC or 24 VDC power supply
• Analog MFT control signal allows field-configurable input and output ranges
• NEMA 2 and IP54 enclosure rating for protection against dust and dripping water
• Low 6 VA power draw reduces panel load

Compatibility

Designed as an OEM-style replacement or new-installation actuator for commercial HVAC damper assemblies requiring a 180 inch-pound non-spring-return actuator with 24-volt analog MFT control.

Installation Notes

Installation should be performed by a licensed HVAC technician or controls technician familiar with building automation wiring practices. Disconnect and lock out all power to the air-handling unit and control panel before mounting or wiring the actuator. Verify damper shaft size and bracket compatibility before mounting. Signal wiring should comply with applicable NEC low-voltage wiring requirements and the BAS controller manufacturer specifications.

Technical Specifications

• Torque: 180 inch-pounds
• Power Supply: 24 VAC or 24 VDC
• Nominal Supply Voltage: 24 VAC
• Power Consumption: 6 VA
• Control Signal: Analog (MFT)
• Enclosure Rating: NEMA 2, IP54
• Return Type: Non-Spring Return

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: AMX24-MFT
