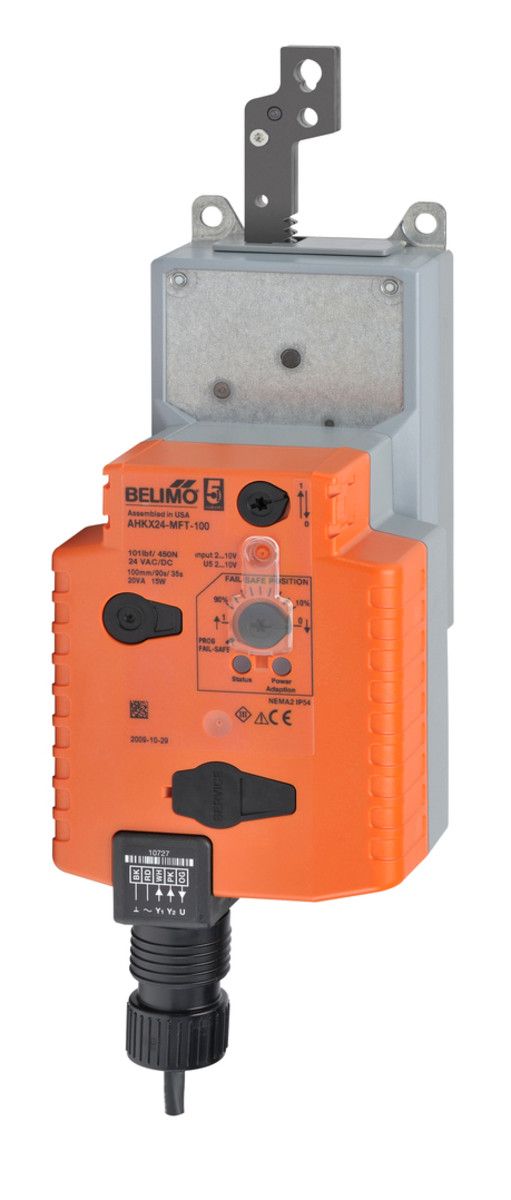

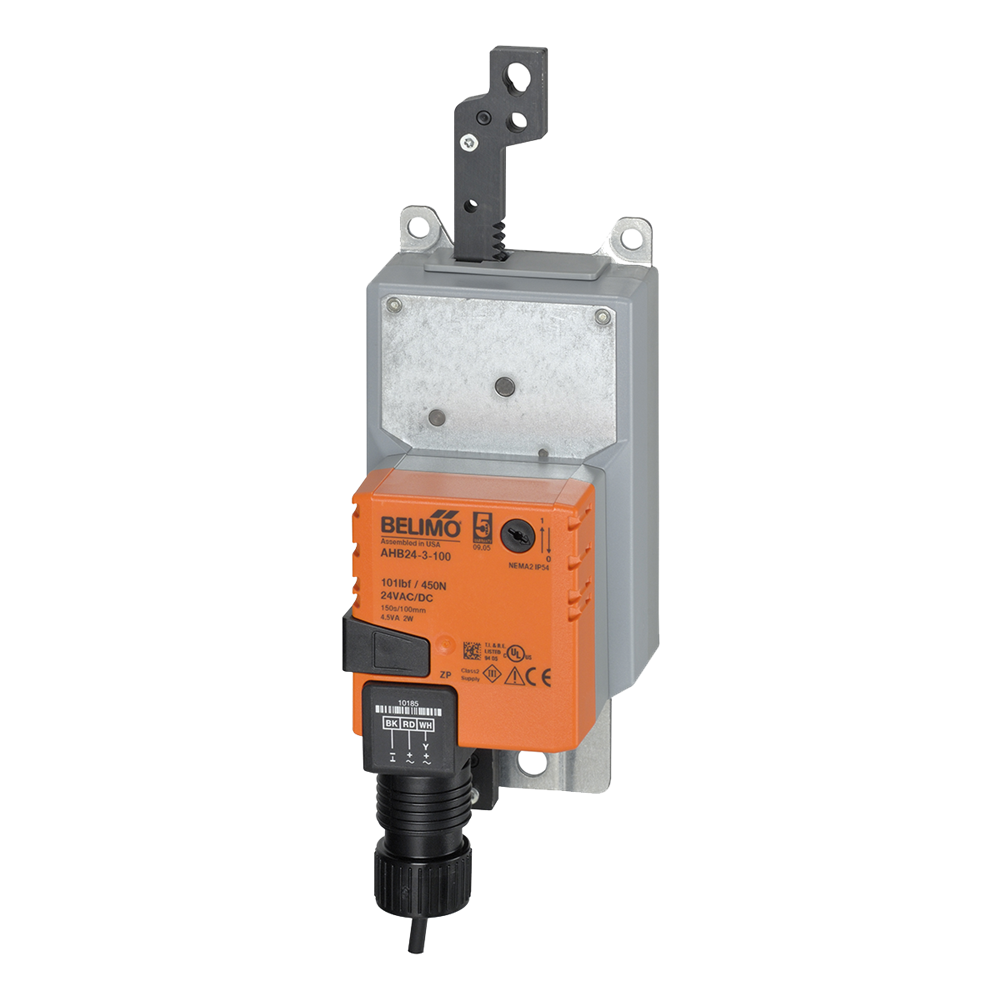

Belimo Ahx24-sr-100 Direct Coupled Actuator 100 ft-lb

Product Description

The BELIMO AHX24-SR-100 is a direct coupled actuator with a force of 100 ft-lb. It operates on 24 VAC/DC and is designed for 2 to 10 VDC or 4 to 20 mA control signals. This non fail-safe actuator is configurable and modulating, suitable for damper control in HVAC systems.

• Non fail-safe operation
• Configurable and modulating
• Manual override for testing and verification

Product Highlights

The BELIMO AHX24-SR-100 offers reliable damper control with its non fail-safe design and modulating capabilities.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: AHX24-SR-100

Technical Specifications

• Product SKU: AHX24-SR-100
• Brand: Belimo
• Part #: AHX24-SR-100
• Actuator Type: Non fail-safe
• Control Type: DC 2...10 V
• Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
• Electrical Connection: cable
• Force: 450 N [100 lbf]
• Manual Override: External push button
• Power Consumption (Holding): 0.5 W
• Power Consumption (Running): 2.5 W
• Running Time (Motor): 150 s / 100 mm
• Safety Function: NO
• Stroke: 4" [100 mm]
• Voltage AC/DC: AC/DC 24 V
• Torque: 101 in-lbs
• Options: None
• Runtime: 150 Secs
• Version: Custom
• Voltage: 24vdc
• Aux. Switch: None
• Nema Rating: Nema 2
• Spring Return: Non-Spring Return
• Communications: None
• Power Consumption For Wire Sizing: 4.5 VA
• Direction Of Motion Motor: reversible with switch
• Degree Of Protection NEMA: NEMA 2
• Enclosure Type: UL Enclosure Type 2
• Ambient Temperature: -22...122 , and the list of the
