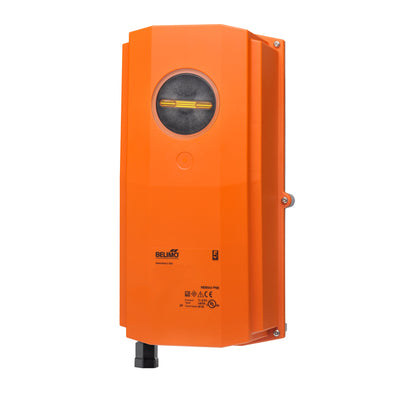

Belimo AFX24N4 Damper Actuator 180 in-lb On/Off NEMA 4

Product Description

The Belimo AFX24N4 is a reliable damper actuator designed for HVAC applications. This actuator operates with a torque rating of 180 in-lb. It functions on a voltage of twenty-four volts in both AC and DC configurations. The AFX24N4 features a spring return mechanism and is suitable for on/off control.

• Torque: 180 in-lb
• Control Type: On/Off
• Degree of Protection: IP66 NEMA 4

Product Highlights

This actuator ensures efficient damper control in various environments while adhering to NEMA ratings for durability.

Product Information

Standard Information

• Brand: Belimo
• MPN: AFX24N4

Technical Specifications

• Actuator Type: Spring return
• Angle of Rotation: 95 degrees
• Control Type: On/Off
• Degree of Protection: IP66 NEMA 4X
• Direction of Rotation (Fail-Safe): Reversible with cw/ccw mounting
• Electrical Connection: Cable
• Manual Override: 5 mm hex crank
• Power Consumption (Holding): 2.5 W
• Power Consumption (Running): 5 W
• Running Time (Fail-safe): Less than 20 seconds
• Running Time (Motor): 75 seconds at 90 degrees
• Safety Function: Yes
• Torque: 180 in-lb (20 Nm)
• Voltage AC/DC: AC/DC 24 V
