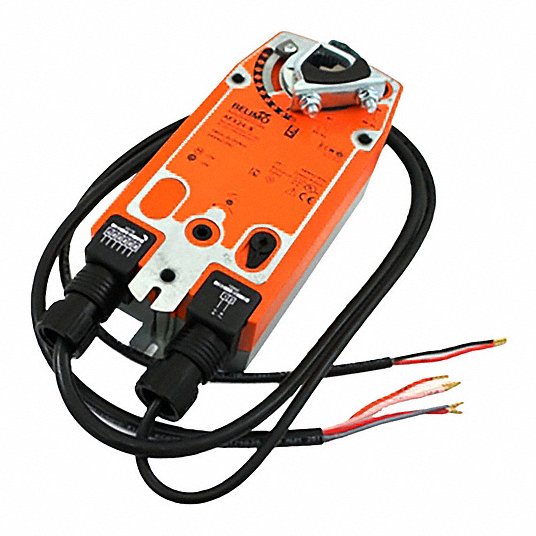

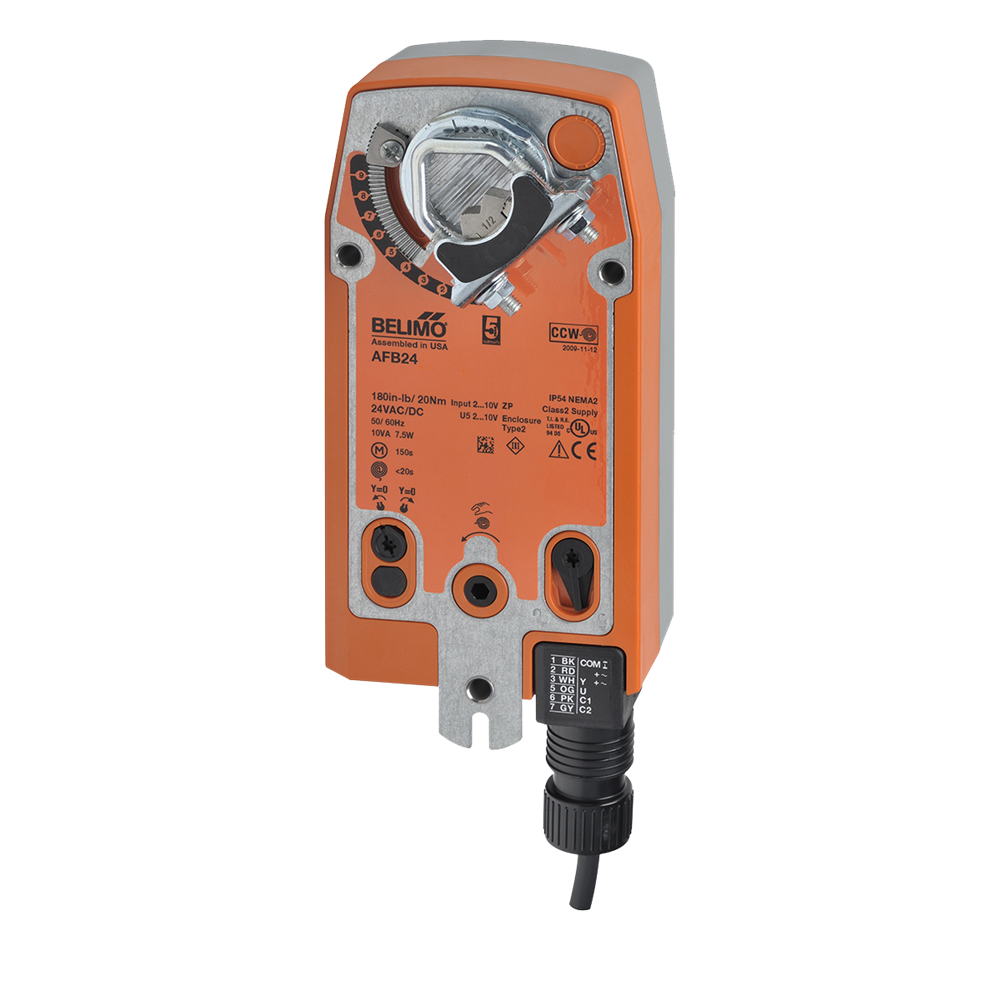

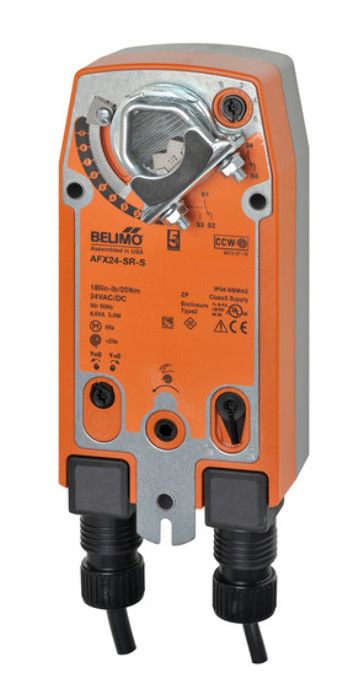

Belimo AFX24-S Damper Actuator 180 in-lb

Product Description

The BELIMO AFX24-S is designed for On/Off, fail-safe control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer's specifications. Control is On/Off from an auxiliary contact or a manual switch. The actuator is mounted directly to a damper shaft up to 1.05" in diameter.

• Provides Constant Torque To The Damper With, And Without, Power Applied To The Actuator
• Provide True Spring Return Operation For Reliable Fail Safe Application And Positive Close Off On Air Tight Dampers
• Provides 95 Degree Of Rotation And Is Provided With A Graduated Position Indicator Showing 0 To 95 Degree

Product Highlights

The BELIMO AFX24-S damper actuator provides reliable fail-safe application and positive close off on air tight dampers.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: AFX24-S
• Country of Origin: United States

Technical Specifications

• Housing: NEMA 2, IP54 UL Enclosure Type 2
• Auxiliary Switch: 2 x SPDT
• Power Consumption: 5 W Running, 2.5 W Holding
• Operating Conditions: -22 F To 122 F (-30 C To 50 C)
• Electrical Connection: (2) 3ft [1m], 10ft [3m] or 16ft [5m] 18 GA appliance cables with or without 1/2 in conduit connectors
• Actuator Type: Spring return
• Angle of Rotation: 95
• Control Type: On/Off
• Power Consumption (Holding): 2.5 W
• Power Consumption (Running): 5 W
• Protection category: IP54
• Running Time (Fail-safe): <20 s
• Running Time (Motor): 75s / 90B0
• Torque: 180in-lb [20Nm]
• Voltage AC/DC: AC/DC24V
• Options: None
• Runtime: 75 Secs
• Version: Custom
• Voltage: 24vdc
• Nema Rating: Nema 2
• Spring Return: Spring Return
• Communications: None
• Supply Va: 8.5 VA
• Power Supply: 24 VAC,24 VDC
• Housing Material: Zinc Coated Metal and Plastic Casing
• Humidity: max. 95% RH non-condensing
• Manual Override: 5mm Hex Crank (3/16 in Allen), Supplied
• Position Indication: visual indicator, 0 b0 to 95 (0 b0 is full spring return position)
• Shaft Diameter: 1/2 in to 1.05 in round, centers on 1/2 in and 3/4 in with insert, 1.05 in without insert
• Quality Standard: ISO 9001
• Power Supply Type: 24V
• Servicing: maintenance free
• Running Time: <75 seconds
• Transformer Sizing: 7.5 VA (class 2 power source)
• Storage Temperature Range: -40 to 176 b0F (-40 to 80 b0C)
• Enclosure Rating: NEMA 2,IP54
• Actuator Series: AFB(X)
• Ambient Temperature Range: -22 to 122 b0F (-30 to 50 b0C)
• Application Type: Air
• Agency Listings: cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2004/108/EC and 2006/95/EC
• Supply Voltage (Nominal): 24 VAC
• Control Signal: Two Position
• Fail Safe: Spring return
• Nominal Voltage: AC/DC 24 V
