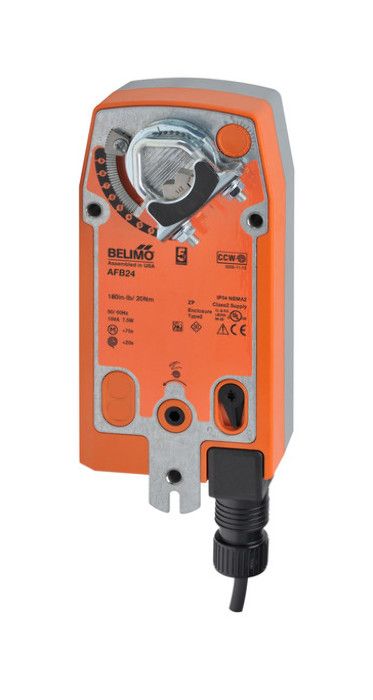

Belimo AFX24-MFT95 Direct Coupled Actuator 180 in-lb

Product Description

The Belimo AFX24-MFT95 is a direct coupled actuator designed for HVAC systems. It features a torque rating of one hundred eighty inch-pounds, making it suitable for various damper applications. This actuator operates on twenty-four volts alternating current and offers input resistance from zero to one hundred thirty-five ohms.

• Constant torque delivery, even without power.
• Spring return operation assured for fail-safe performance.
• Provides a rotation range of ninety degrees with a clear position indicator.

Product Highlights

This actuator is ideal for HVAC control, ensuring reliable operation in dampers and valves.

Product Information

Standard Information

• Brand: Belimo
• Part Number: AFX24-MFT95

Technical Specifications

• Torque: 180 in-lbs
• Power Consumption: 7.5 W running, 3 W holding
• Operating Conditions: -22 F to 122 F (-30 C to 50 C)
• Electrical Connection: 3 ft. 18 GA plenum cable with 1/2 in. conduit cable
• Runtime: 70-220 secs
• Voltage: 24 vdc
• Spring Return: Yes
• Nema Rating: Nema 2
