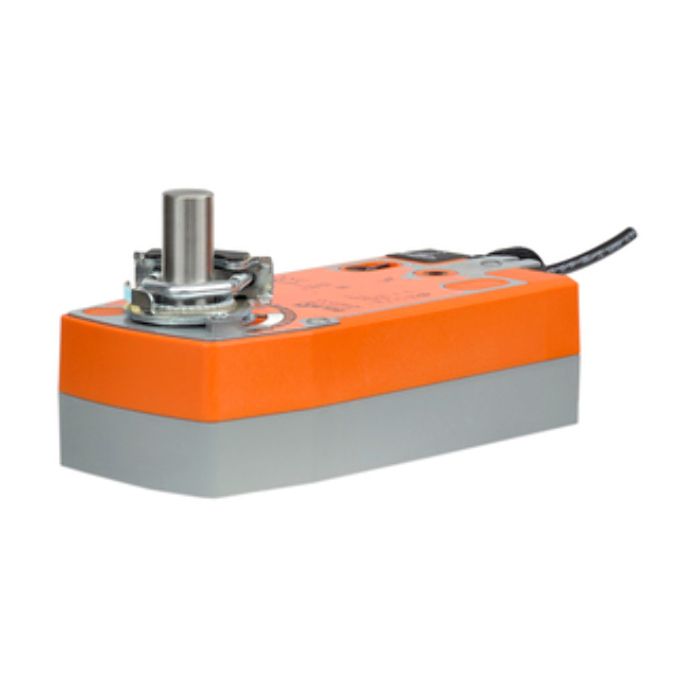

Belimo AFX24-MFT-X1 Direct Coupled Actuator 180 in-lb

Product Description

The Belimo AFX24-MFT-X1 is a direct coupled actuator designed to provide reliable control for HVAC applications. It features a torque capacity of one hundred eighty inch-pounds. This actuator is ideal for use in both commercial and residential systems where modulating control is necessary.

• Torque capacity of one hundred eighty inch-pounds.
• Spring return operation ensures fail-safe performance.
• Operable in a temperature range from negative twenty-two degrees Fahrenheit to one hundred twenty-two degrees Fahrenheit.

Product Highlights

This actuator is built for durability and precision in operation. It can provide a constant torque to dampers, ensuring optimal performance regardless of power status.

Product Information

Standard Information

• Brand: Belimo
• MPN: AFX24-MFT-X1

Technical Specifications

• Torque: 180 in-lbs
• Power Consumption: 7.5 W Running, 3 W Holding
• Operating Conditions: -22 F to 122 F (-30 C to 50 C)
• Electrical Connection: 18 GA Appliance Rated Cable
• Degree of Protection: NEMA 2, IP54
• Angle of Rotation: 95 degrees
• Running Time: <20 seconds for fail-safe
• Fluid Compatibility: Chilled or hot water up to 60% glycol
