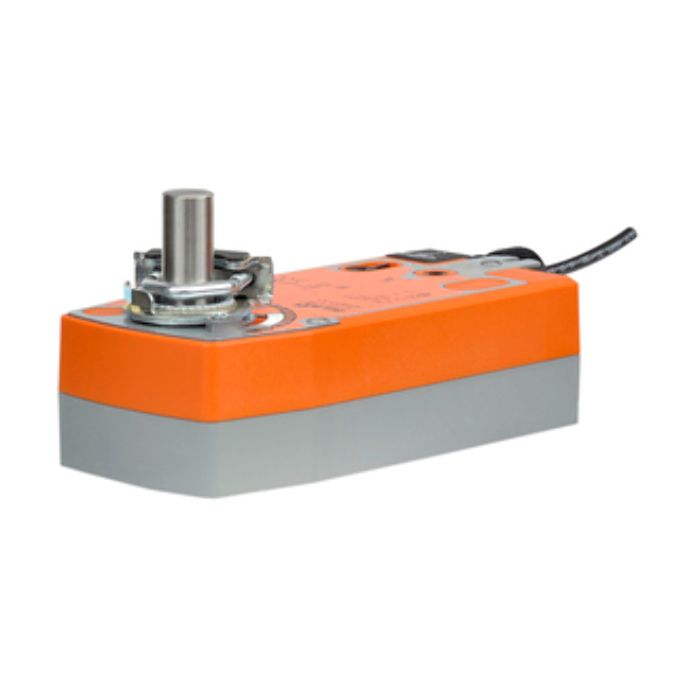

Belimo AFX24-MFT-S Direct Coupled Actuator 180 in-lb

Product Description

The Belimo AFX24-MFT-S is a direct coupled actuator providing a torque of one hundred eighty inch-pounds. This actuator is designed to operate reliably in various HVAC applications. Built with multi-function technology, it can perform modulating tasks effectively. This actuator is essential for controlling dampers in heating, ventilation, and air conditioning systems.

• Provides constant torque with or without power applied.
• Features a true spring return capability for dependable operation.
• Offers up to ninety-five degrees of rotation, displayed on a graduated position indicator.

Product Highlights

This actuator is ideal for HVAC technicians needing reliable damper control in their systems.

Product Information

Standard Information

• Brand: Belimo
• Part Number: AFX24-MFT-S

Technical Specifications

• Housing: NEMA 2, IP54 UL Enclosure Type 2
• Auxiliary Switch: 2 x SPDT
• Power Consumption: 7.5 W Running, 3 W Holding
• Operating Conditions: -22 F to 122 F (-30 C to 50 C)
• Electrical Connection: Two 3 ft., 10 ft., or 16 ft. 18 GA appliance or plenum cables, with or without 1/2 in. conduit connector
• Torque: 180 in-lbs
• Runtime: 70-220 secs
• Voltage: 24V DC
• Item Weight: 6.00 lbs per EA
