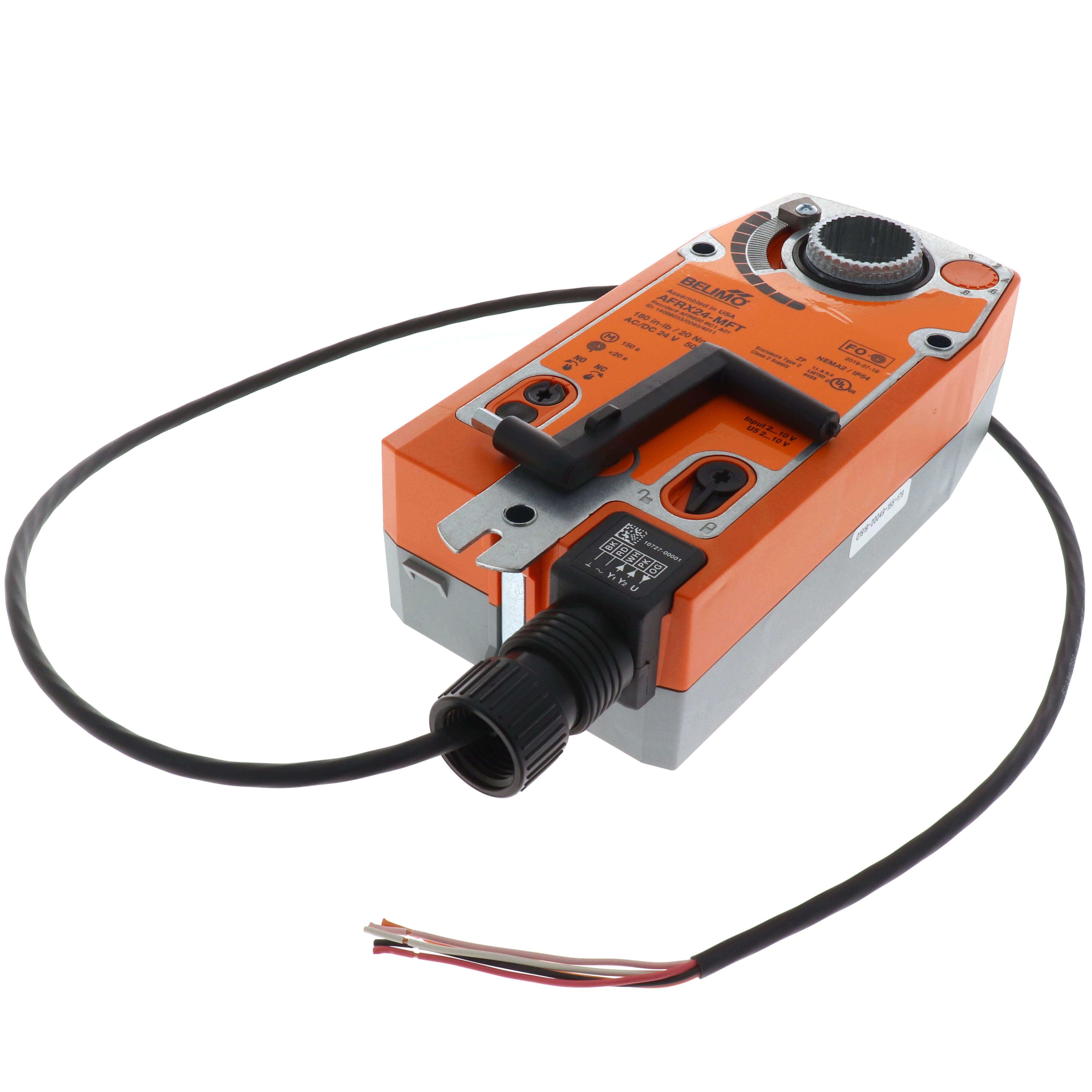

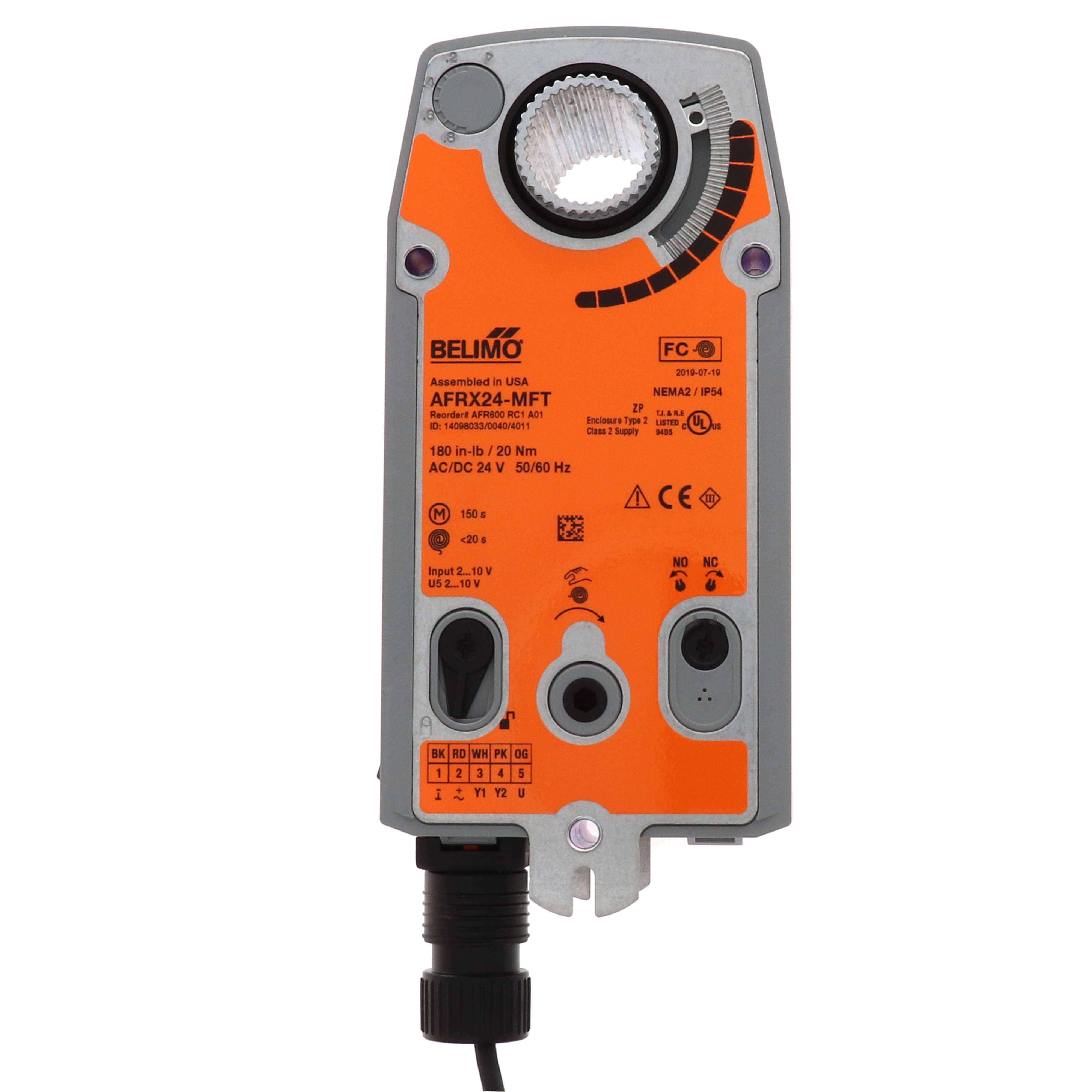

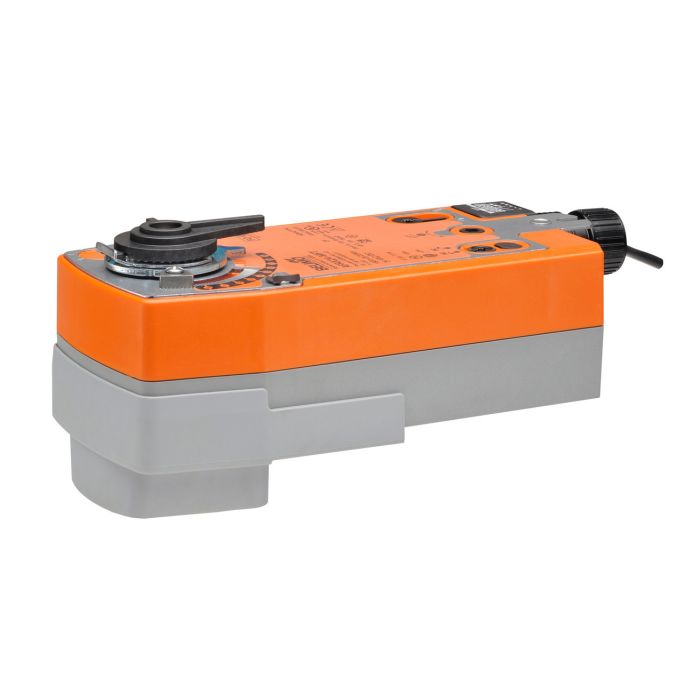

Belimo AFRX24-MFT Direct Coupled Actuator 24V 180 in-lb

Product Description

The Belimo AFRX24-MFT is a direct coupled actuator designed for 24V systems, delivering a torque of 180 in-lb. It features modulating and spring return functions, making it ideal for various HVAC applications including unit ventilators and VAV box re-heat coils.

• Provides constant torque to dampers with or without power applied.
• Offers reliable spring return operation for fail-safe applications.
• Features 95 degrees of rotation with an indicator for precise positioning.

Product Highlights

The actuator is built with Multi-Function Technology, allowing flexibility in programming and control input. It can be easily integrated into hydronic systems for efficient flow management.

Product Information

Standard Information

• Power Supply: 24 VAC/DC
• Torque: 180 lb-in

Technical Specifications

• Power Consumption: 7.5 W running, 3 W holding
• Operating Temperature: -22°F to 122°F (-30°C to 50°C)
• Electrical Connection: 3 ft, 18 GA appliance cable with 1/2 in. conduit
• Angle of Rotation: 90 degrees
• Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
• Manual Override: Yes
• Control Type: MFT/Programmable
• Flush Pressure: 0-10 VDC
