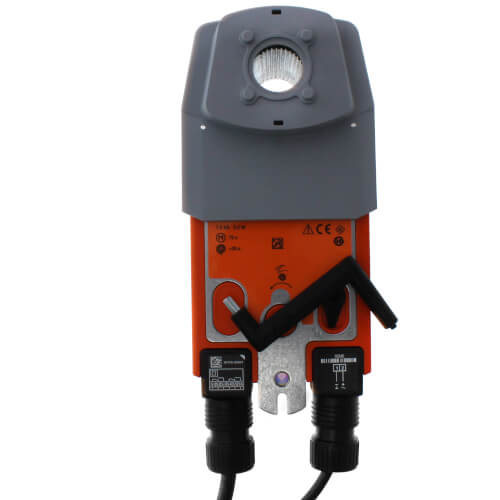

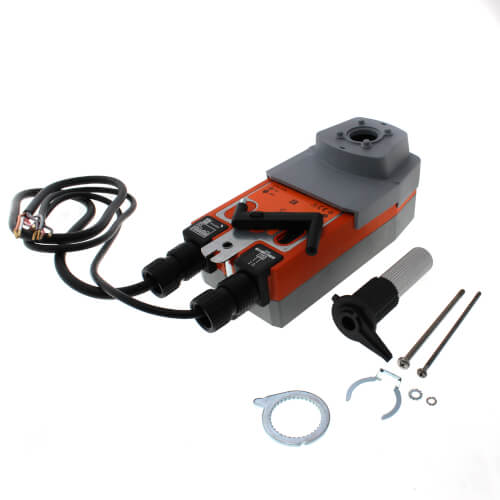

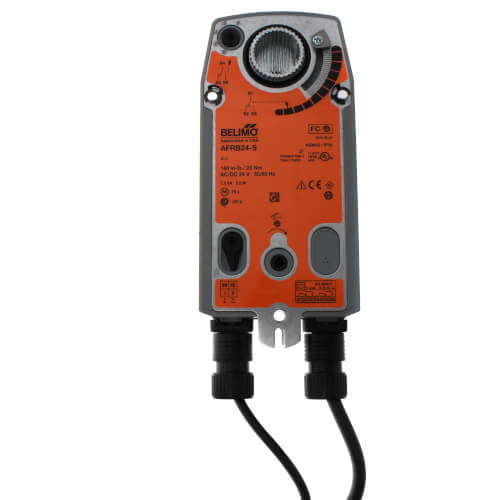

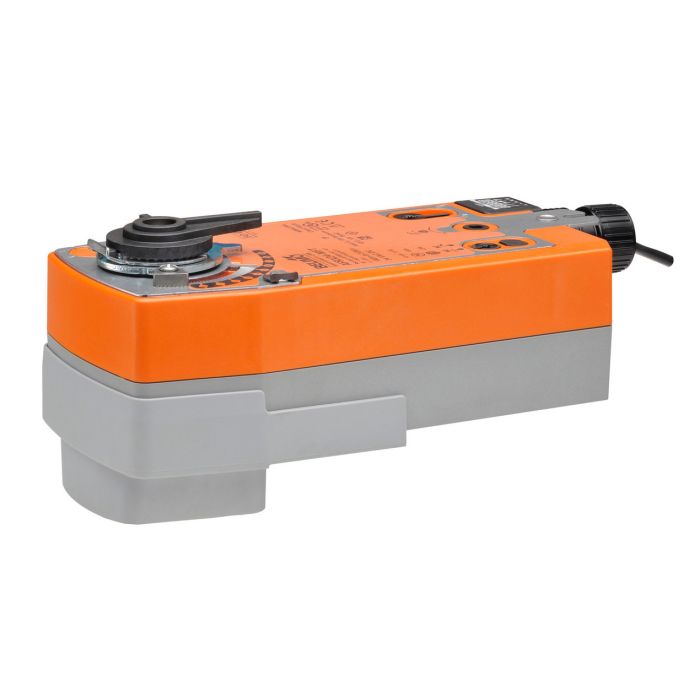

Belimo AFRB24-S Direct Coupled Actuator, 180 in-lb, 24V On/Off

Product Description

The Belimo AFRB24-S is a direct coupled actuator designed for 24 VAC/DC systems. It delivers 180 inch-pounds of torque, making it suitable for various HVAC applications including air handling units and VAV box re-heat coils.

• On/Off control with reliable spring return operation.
• Provides 95 degrees of rotation with a graduated position indicator.
• Can stall anywhere in its rotation without mechanical end switches.

Product Highlights

This actuator ensures constant torque to the damper with or without power applied, making it ideal for fail-safe applications.

Product Information

Standard Information

• Brand: Belimo
• MPN: AFRB24-S

Technical Specifications

• Actuator Type: Spring return
• Torque: 180 lb-in
• Operating Conditions: -22°F to 122°F
• Electrical Connection: 3 ft. 18 GA appliance cable with 1/2 in. conduit cable
• Power Consumption: 5 W running, 2.5 W holding
• Auxiliary Switch: 2 x SPDT
• Protection Rating: IP54, NEMA 2 UL Enclosure Type 2
• Voltage: AC/DC 24V
