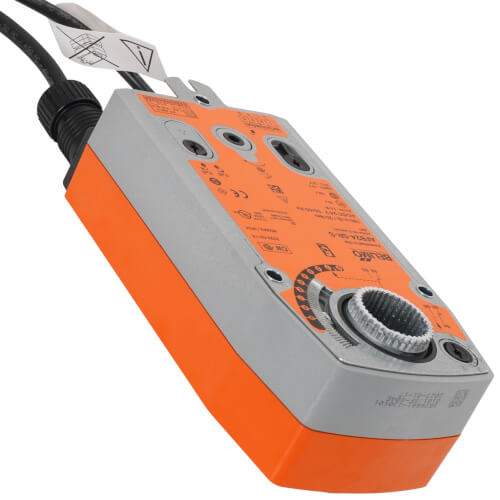

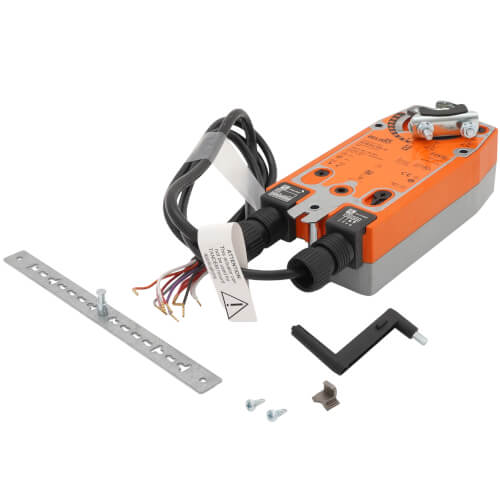

Belimo AFB24-SR-S Direct Coupled Actuator 180 in-lb

Product Description

The Belimo AFB24-SR-S is a direct coupled actuator designed for HVAC systems. This actuator operates on 24 VAC/DC and provides a torque of 180 in-lb. It is suitable for two to ten VDC or four to twenty mA control signals.

• Modulating, spring return operation
• True spring return for reliable fail-safe operation
• 95 degrees of rotation with a position indicator

Product Highlights

The actuator is mounted directly to the damper shaft and is equipped with a brushless DC motor controlled by a microprocessor. This design ensures a constant torque is applied to the damper, with or without power.

Product Information

Standard Information

• Brand: Belimo
• MPN: AFB24-SR-S

Technical Specifications

• Power Supply: 24 VAC/DC
• Torque: 180 lb-in
• Auxiliary Switch: 2 x SPDT
• Operating Conditions: -22 F to 122 F
• Power Consumption: 5.5 W running, 3 W holding
• Electrical Connection: Two 3 ft. 18 GA appliance cable
• Rotation Angle: 95 degrees
• Shipping Dimensions: 12.1 x 6.3 x 4.3 inches
