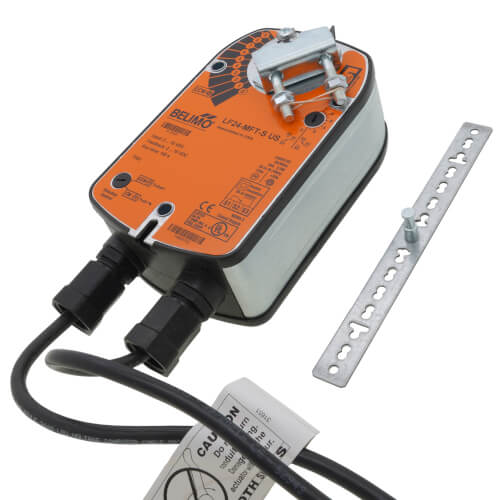

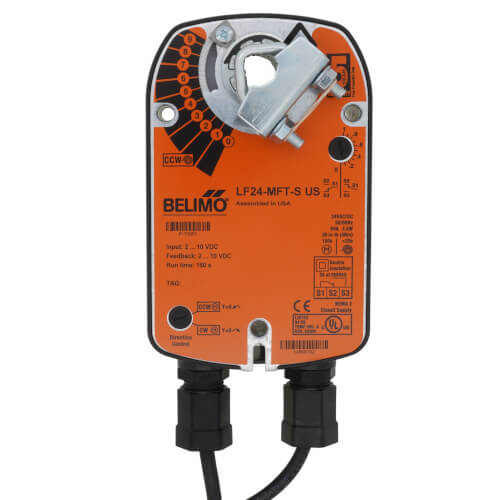

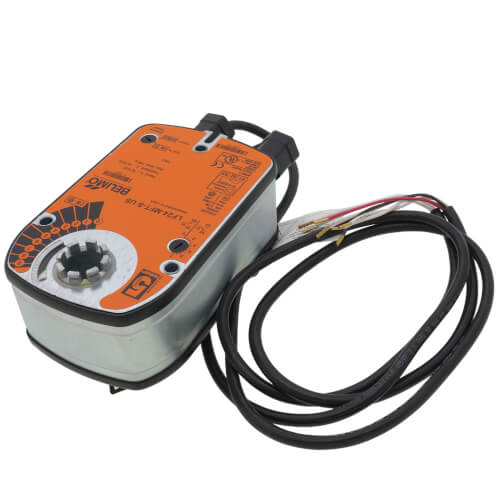

Belimo LF24-MFT-S Spring Return Damper Actuator 35 lb-in 24VAC/DC

Product Description

The Belimo LF24-MFT-S is a high-performance spring return damper actuator designed for robust, reliable operation in HVAC systems. Engineered to efficiently modulate dampers and control valves, this actuator is equipped with multi-function technology (MFT) and operates on a 24VAC/DC power supply.

• True mechanical spring return ensures fail-safe operation.
• Easy installation with direct coupling and a clear position indicator.
• Adjustable mechanical stop to limit damper rotation.

Product Highlights

This actuator features a rugged metal housing that withstands tough conditions and a microprocessor-controlled brushless DC motor that enhances lifespan and reliability. Efficient power consumption and overload-proof performance across rotation assure lasting service.

Product Information

Specifications

• Brand: Belimo
• MPN: LF24-MFT-S
• Weight: 4.4 pounds
• Dimensions: Height: 10 inches, Width: 10 inches, Depth: 15 inches
• Voltage: 24 VAC/DC
• Torque: 35 lb-in
• Control Input: 2 to 10 VDC, 4 to 20 mA
• Running Time: 150 seconds (motor), 25 seconds (spring), 60 seconds at -22°F (spring)
• Temperature Range: -22°F to +122°F
• Direction of Rotation: Reversible with built-in switch
• Auxiliary Switch: 1 SPDT
• Fail Safe Mode: Spring Return
