Product Description

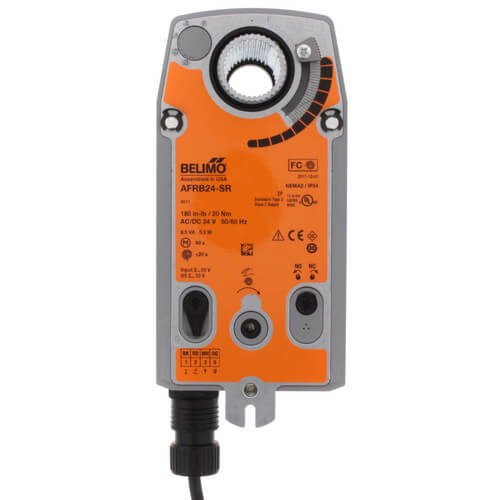

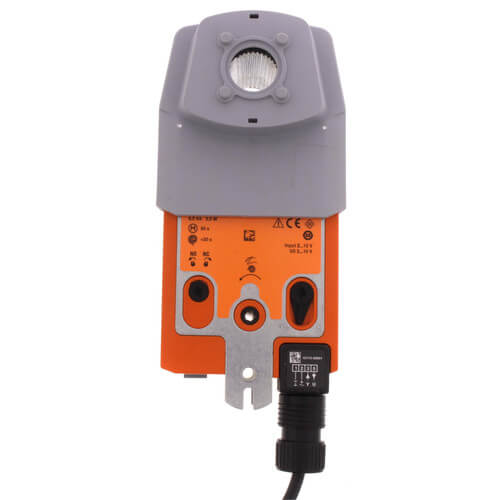

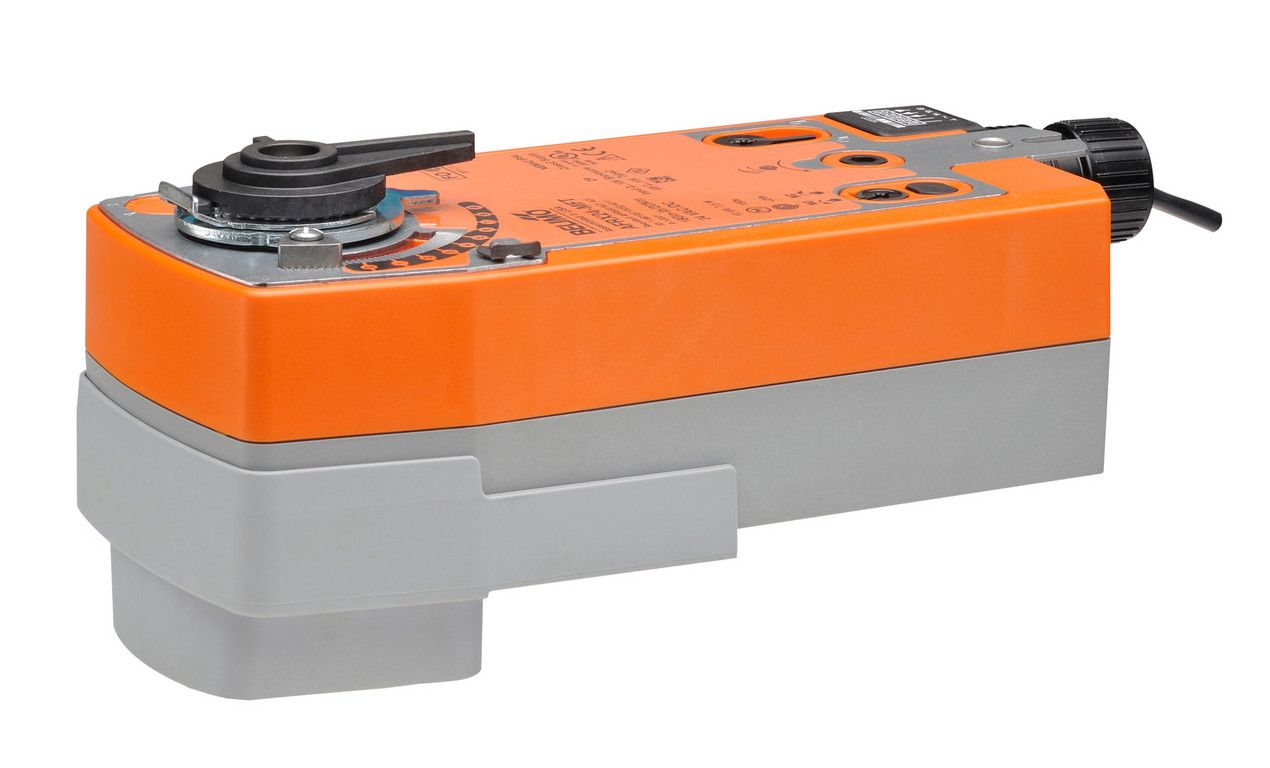

The Belimo AFRB24-SR Spring Return Control Valve Actuator is designed for use in various HVAC applications. The actuator operates with a modulating signal and is suitable for both clockwise and counterclockwise fail-safe operations.
- Direct coupled actuator
- Spring return fail-safe mode
- Microprocessor controlled brushless DC motor
Product Highlights
This actuator provides proportional damper control with a 2 to 10 VDC signal or a 4 to 20 mA input when paired with a resistor. It ensures reliable performance with a brushless DC motor that is protected from overload in any position.
Product Information
Standard Information
-
Trade Name: Belimo
-
MPN: AFRB24-SR
Technical Specifications
-
Control Type: DC 2...10 V
-
Actuator Type: Spring return
-
Voltage AC/DC: AC/DC 24V
-
Angle of Rotation: 90 degrees
-
Protection Category: IP54
-
Degree of Protection: IP54 NEMA2 UL Enclosure Type2
-
Running Time (Motor): 95s / 90B0
-

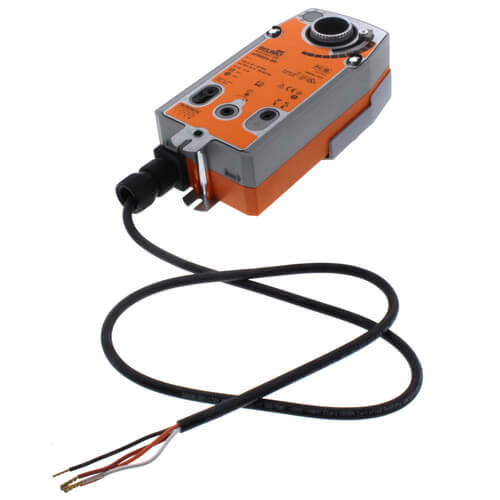

Electrical Connection: Cable
-
Running Time (Fail-safe): Less than 20 seconds
-
Power Consumption (Holding): 3W
-
Power Consumption (Running): 5.5W
