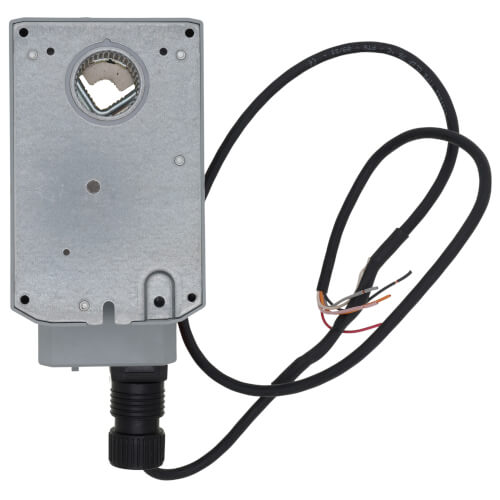

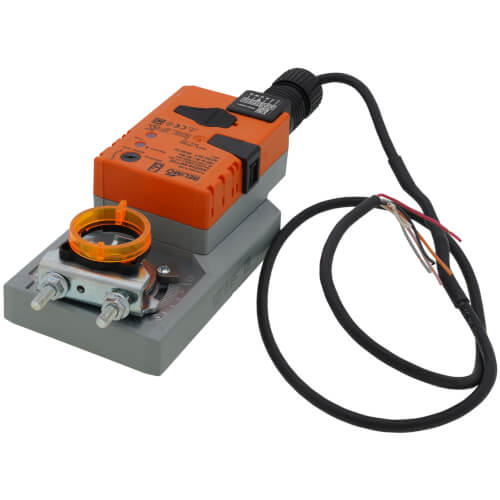

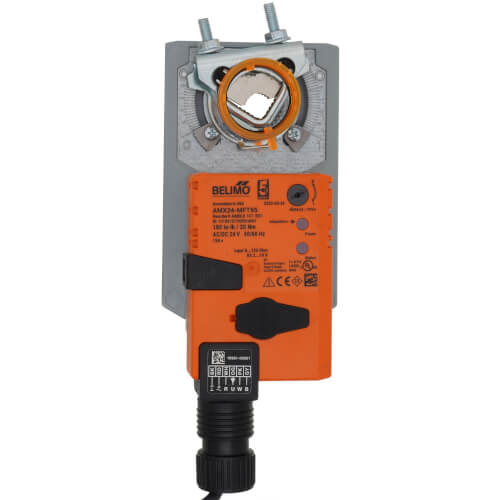

Belimo AMX24-MFT95 Damper Actuator 180 in-lb Non-Spg Rtn 24V Modulating

Product Description

The Belimo AMX24-MFT95 is a robust damper actuator designed for modulation of dampers in HVAC systems. It features a non-spring return mechanism and provides accurate control over damper operations.

• Brushless DC motor ensures reliable, accurate modulation.
• Direct damper coupling with multiple clamps for versatility.
• Electronic protection against overload ensures longevity.

Product Highlights

This actuator delivers 180 in-lb torque with 95 degrees of rotation, visible through a clear position indicator. The compact size allows for easy installation in space-restricted environments.

Product Information

Standard Information

• Brand: Belimo
• MPN: AMX24-MFT95

Technical Specifications

• Actuator Type: Non fail-safe
• Control Type: 0...135 ohm
• Power Consumption (Running): 3.5 W
• Power Consumption (Holding): 1.3 W
• Protection Category: IP54
• Angle of Rotation: 95 Degrees
• Running Time (Motor): 150 seconds
• Torque: 180 in-lb
• Voltage AC/DC: AC/DC 24V
