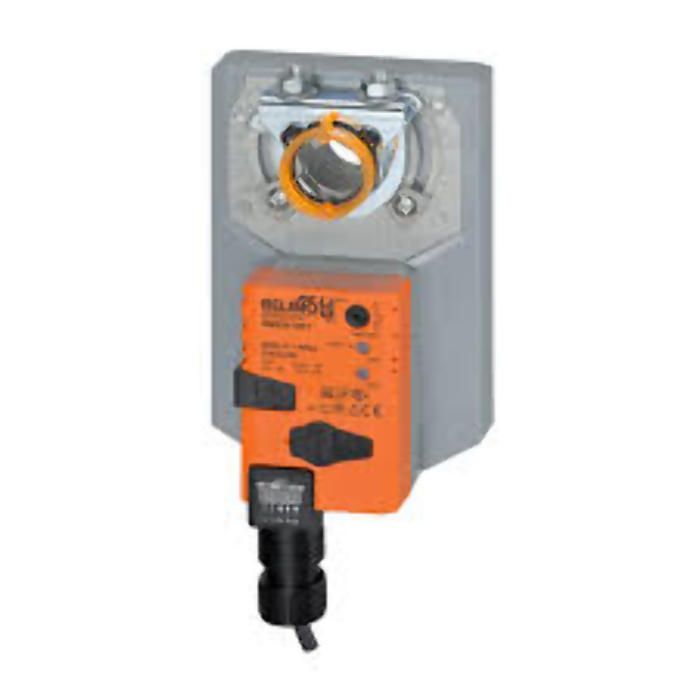

Belimo GMB24-MFT Non-Spring Return Proportional Damper Control Actuator 24 VAC/DC

Product Description

The Belimo GMB24-MFT is a non-spring return, proportional damper control actuator designed to modulate dampers in HVAC systems. It operates on 24 VAC/DC power, making it ideal for various applications. This actuator delivers reliable performance without the need for limit switches and is protected against overload.

• Brushless DC motor for added accuracy
• Simple direct coupling
• Clear position indicator

Product Highlights

The GMB24-MFT actuator features a brushless DC motor, providing accurate control and easy coupling. It offers flexibility with mechanical stops and a clear position indicator. A manual override button and auxiliary switch add convenience.

Product Information

Standard Information

• Brand: Belimo
• MPN: GMB24-MFT
• Category: HVAC Actuators and Valves

Technical Specifications

• Power Supply: 24 VAC/DC
• Torque: 360 lb-in
• Running Time: 150 seconds
• Power Consumption: 4.5W (running), 1.5W (holding)
• Control Input Values: 2 to 10 VDC, 4 to 20 mA
• Ambient Temperature: -22°F to +122°F
• Weight: 4.5 lb
• Length: 11.15 inches
• Width: 5.85 inches
• Height: 3.65 inches
