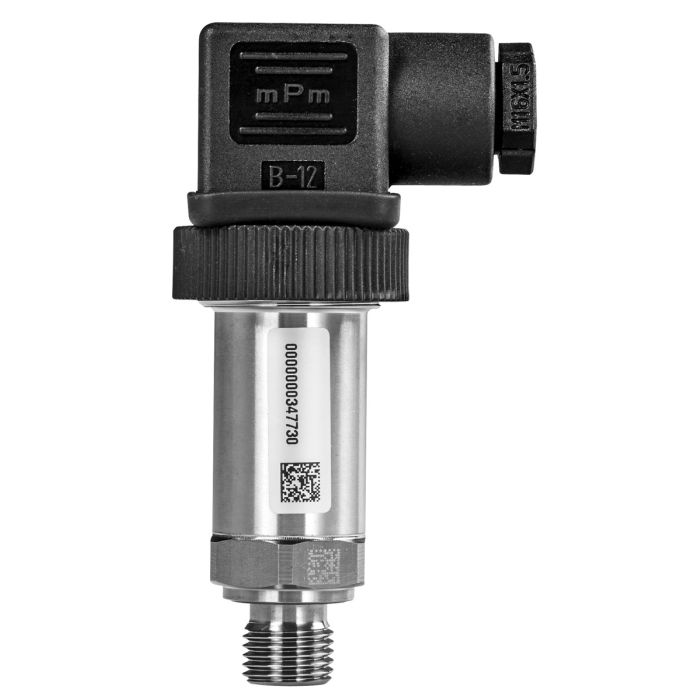

Belimo 22WP-536 Pressure Liquid Sensor 100psi A

Product Description

The Belimo 22WP-536 is a pressure liquid sensor designed for HVAC systems. It measures pressure in water and water/glycol mixtures. With a measuring range from zero to one hundred psi, this sensor provides an active output signal of four to twenty milliamp. It is housed in a durable enclosure with NEMA 4X protection, making it suitable for various environments.

• Measures pressure from 0 to 100 psi
• Active output signal of 4 to 20 mA
• NEMA 4X rated for outdoor use

Product Highlights

This product is essential for monitoring pressure in HVAC systems, ensuring efficient operation and safety.

Product Information

Standard Information

• Brand: Belimo
• Part Number: 22WP-536

Technical Specifications

• Application: Pipe
• Degree of Protection: IP65 NEMA 4
• Electrical Connection: Connector Plug
• Measured Values: Relative pressure
• Measuring Range Pressure: 0 to 100 psi
• Output Signal: 4 to 20 mA
• Product Type: Sensor
• Sensor Type: Pressure
• Voltage AC/DC: DC 24 V
