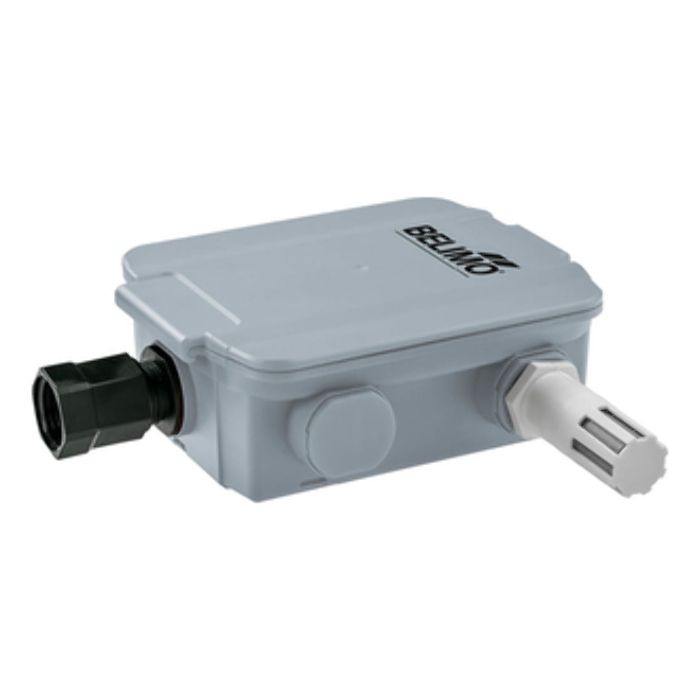

Belimo 22UTH-530Q Outdoor Humidity And Temperature Sensor

Product Description

The Belimo 22UTH-530Q is an outdoor humidity and temperature sensor designed for reliable monitoring in HVAC systems. This unit features a 20K NTC passive temperature output signal and a 4 to 20 mA active humidity output signal. It comes equipped with a weather shield, providing a robust NEMA 4X enclosure to withstand various environments.

• Measures both humidity and temperature outdoors.
• Weather shield ensures protection from outdoor conditions.
• Compatible with various HVAC control systems.

Product Highlights

This sensor is suitable for HVAC applications requiring accurate humidity and temperature readings. It can be used in residential and commercial buildings.

Product Information

Standard Information

• Brand: Belimo
• Part Number: 22UTH-530Q

Technical Specifications

• Mounting: Wall Mount
• Enclosure: NEMA 4X
• Configuration: Outdoor
• Sensors Application: Humidity, Temperature
• Temperature Sensor Type: 20K
• Output Voltage Signal Range: 4 To 20 mA
• Measuring Range Temperature: -30 to 120°F [-35 to 50°C]
• Measuring Range Humidity: 0 to 100% RH non-condensing
