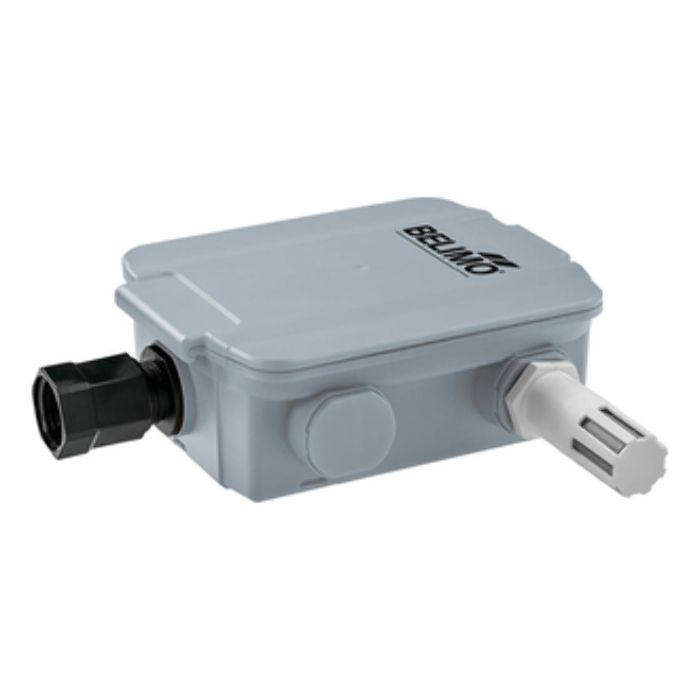

Belimo 22UTH-530B Outdoor Humidity And Temperature Sensor

Product Description

The Belimo 22UTH-530B is an outdoor humidity and temperature sensor designed for precise measurement in various environmental conditions. It offers passive temperature output via PT1000 and an active humidity signal of four to twenty milliamperes. The sensor is housed in a NEMA four X enclosure, ensuring durability against harsh weather.

• Passive Temperature Output with PT1000
• Active Humidity Output Signal of 4 to 20 mA
• Includes Weather Shield and Wall Mounting

Product Highlights

This sensor is ideal for HVAC control systems where monitoring of outdoor humidity and temperature is critical. It features easy installation with included wall mounting and weather protection.

Product Information

Standard Information

• Brand: Belimo
• Part Number: 22UTH-530B

Technical Specifications

• Mounting: Wall Mount
• Configuration: Outdoor
• Temperature Sensor Type: PT1000
• Output Voltage Signal Range: 4 to 20 mA
• Degree of Protection: IP65 NEMA 4X
• Measuring Range Temperature: -30 to 120 °F
• Measuring Range Humidity: 0 to 100% RH
• Electrical Connection: Terminals
