Description

Product Description

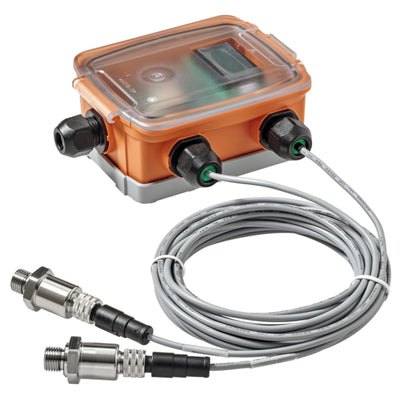

The BELIMO 22PDP-585 is a pipe differential pressure sensor designed for wet to wet applications. This active sensor measures differential pressure in HVAC systems, suitable for water and water-glycol mixtures. It features remote probes, an LCD display, and a measuring range of 0 to 100 PSI. The sensor provides multiple output signals including 4-20 mA, 0-5 V, and 0-10 V, and is housed in a NEMA 4X / IP65 rated enclosure.

  • Active sensor with 4-20 mA, 0-5 V, or 0-10 V output for HVAC systems.
  • Measures differential pressure in water and water-glycol mixtures.
  • Features a NEMA 4X / IP65 rated enclosure and LCD display.

Product Highlights

Wet to wet differential pressure sensor with LCD, remote probes, and 0-100 PSI measuring range for HVAC applications.

Product Information

Standard Information

  • Brand: BELIMO
  • Manufacturer Part Number: 22PDP-585
  • Country of Origin: Switzerland
Technical Specifications
Additional Features
NFC
Electrical Connection
Terminals
Measured Values
Differential pressure
Measuring Range Temperature
32-122°F (0-50°C)
Output Signal
0-5V, 0-10V, 4-20 mA
Product Type
Sensor
Sensor Type
Differential pressure transducer
Input Voltage
24V AC/DC
Sensor Style
Active differential pressure transducer for water/glycol with LCD
Measuring Fluid
Water, water-glycol mixtures
Sensing Element
Strain gauge / pressure transmitter
Output Load
V output: min. 10 kOhm; mA output: max. 500 Ohm loop resistance
Pressure Measuring Range (Default)
0-100 psi differential
Pressure Measuring Range (Selectable)
4 sub-ranges via DIP switch within 0-100 psi envelope
Overpressure Tolerance (Positive)
200 psi
Overpressure Tolerance (Negative)
-1 bar (-14.5 psi)
Burst Pressure
2000 psi
Pressure Accuracy (Range 1)
+/-1.0% FS at 72°F (22°C)
Pressure Accuracy (Range 2)
+/-0.5% FS at 72°F
Pressure Accuracy (Range 3, 4)
+/-0.4% FS at 72°F
Temperature Coefficient
+/-0.03% FS / K
Long-Term Stability
+/-0.25% FS per year
Response Time
<0.5 s
Display Details
LCD 0.63x1.50" (16x38 mm) on housing, visible through transparent top cover
Power Supply Details
24 VAC/VDC (AC 21.6-26.4V / DC 21.6-26.4V)
Power Consumption
3.1 VA AC / 1.4 W DC
Electrical Connection Type
Pluggable spring-loaded terminal block, max 2.5 mm2
Cable
10-foot factory-installed PVC cable
Cable Entry
Cable gland with strain relief, PA6 black, 6-8 mm
Pressure Connection
2x 1/4" NPT
Housing Top Cover
Polycarbonate, transparent
Housing Bottom
Polycarbonate, orange
Housing Seal
NBR
Wetted Parts
Stainless steel 17-4 PH
Enclosure Rating
NEMA 4X / IP65, UL Enclosure Type 4X
Protection Class
IEC/EN III, SELV
UL Approval
cULus per UL60730-1/-2-6, CAN/CSA E60730-1/-2
EU Conformity
CE Marking
Certification
IEC/EN 60730-1 and IEC/EN 60730-2-6
Pollution Degree
4
Ambient Temperature
32 to 122°F (0 to 50°C)
Fluid Temperature
-40 to 220°F (-40 to 105°C)
Storage Temperature
-40 to 140°F (-40 to 60°C)
Ambient Humidity
Max. 95% RH, non-condensing
Quality Standard
ISO 9001
Manufacturer
Belimo
Manufacturer Part Number
22PDP-585
Series
22PDP
Pressure Range Category
Multi-Range (up to 100 psi)
Hazardous Location
Standard
Bypass Manifold
None
Cable Type
Standard Cable
Wetted Material
17-4 PH Stainless Steel
Type
Wet-Wet
Measuring Range Pressure (bar)
0-6.9 bar
Output Voltage Range
1 x 0-5 V, 0-10 V, min. resistance 10 kOhm
Output Current Range
1x 4-20 mA, max. resistance 500 Ohm
Output Signal Active Note
0-5/10 V or 4-20 mA output, selectable with switch in unpowered state
