Belimo 22HL-50 Leak Detection Sw A/R LED 24V

Product Description

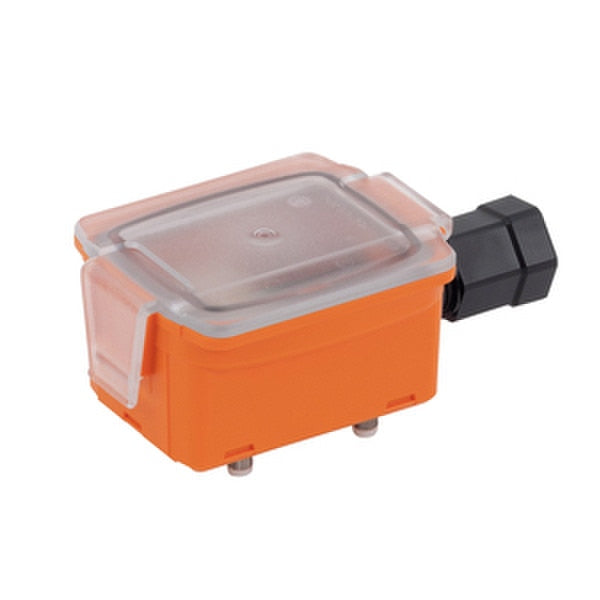

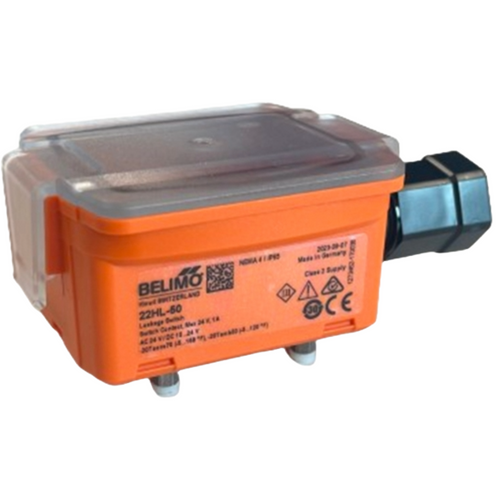

The BELIMO 22HL-50 leak detection switch is designed to detect leaks in air handling systems. It is designed to be mounted in the air stream and will activate when it comes into contact with water. The switch is rated for 24V AC/DC and has a normally open (NO) contact. The sensor features an auto-reset function and LED status indication.

• Detects leaks in air handling systems
• Mounts in the air stream
• 24V AC/DC

Product Highlights

Active liquid leak detection sensor designed for monitoring and alarm applications in building automation systems.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: 22HL-50

Technical Specifications

• Brand: Belimo
• Item Number: 22HL-50
• Power Supply: 24V AC/DC
• Electrical Connection: Terminal block
• Detection Type: Liquid leakage
• Output Signal: SPDT switch contact
• Relay Contact Ratings Max: 1A @ 24V
• Relay Contact Ratings Min: 5mA @ 10V
• Enclosure Rating: IP65 / NEMA 4X
• Probe Sensor: Attached Sensor
• MPN: 22HL-50
• Condition: New
