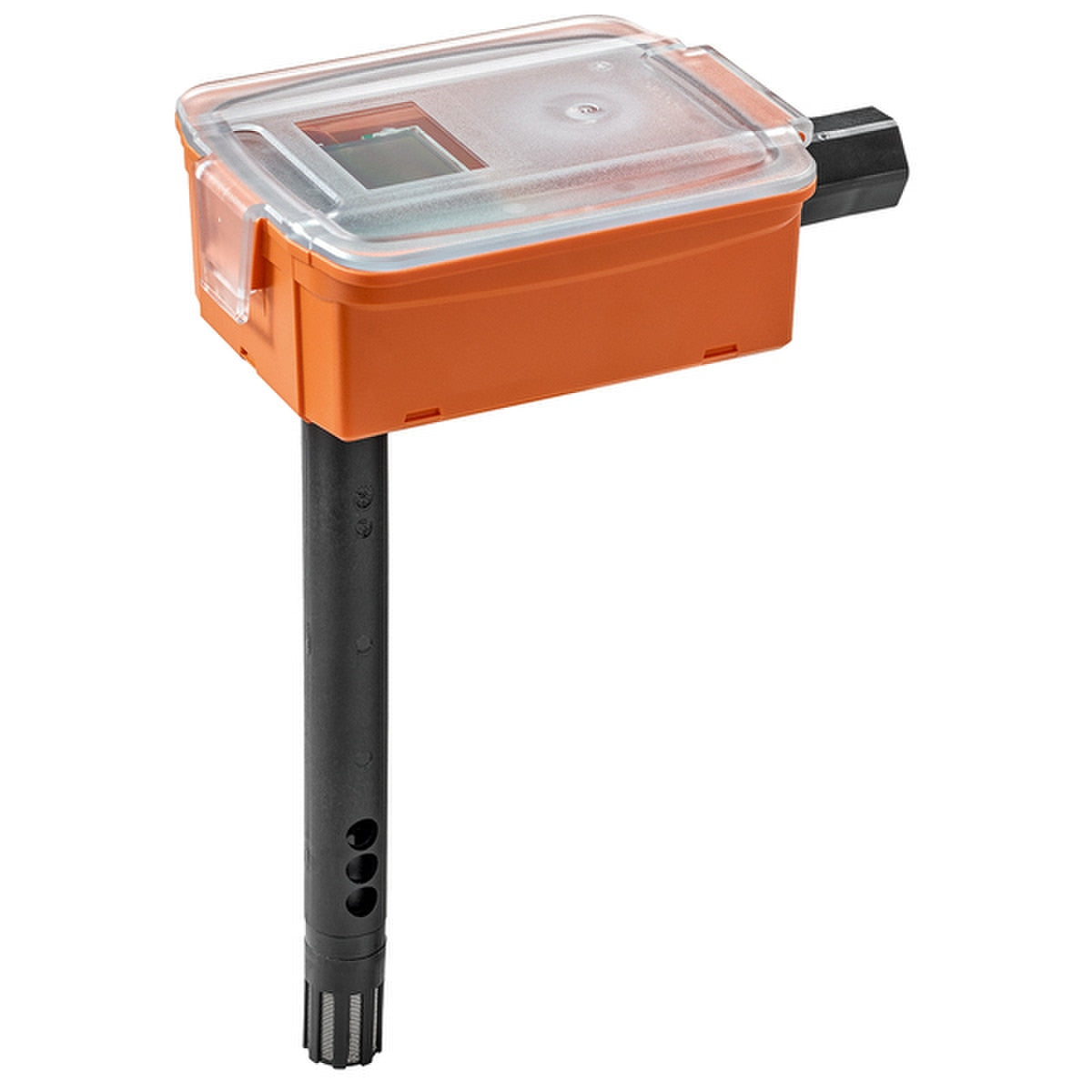

Belimo 22DTM-5106 Duct CO2, Humidity And Temp. Sensor

Product Description

The BELIMO 22DTM-5106 is an active sensor designed for measuring CO2, temperature, and humidity. It features dual channel CO2 technology, CO2 gas, conduit adaptor, field selectable options, and an LCD display. It provides 0 to 5 VDC, 0 to 10 VDC active CO2, humidity, and temperature output signal and NEMA 4X enclosure.

• Active Sensor For Measuring CO?, Temperature And Humidity.
• Dual Channel CO? Technology.
• CO2 Gas, Conduit Adaptor, Field Selectable, LCD Display

Product Highlights

This duct mount air quality sensor measures CO2, temperature, and humidity with 0-5/10V outputs and an optional LCD display.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: 22DTM-5106

Technical Specifications

• Mounting: Duct Mount
• Enclosure: NEMA 4X
• Probe Lead: 5-7
• Configuration: Duct
• Sensors Application: Gas Specialty, Humidity, Temperature
• Output Voltage Signal Range: 0 To 5 V, 0 To 10 V
• Application: Duct
• Degree of Protection: IP65 NEMA4X
• Display Type: LCD
• Electrical Connection: terminals
• Measured Values: COb Temperature Humidity
• Measuring Range Humidity: 0...100% RH
• Measuring Range Velocity: Min. 1 ft/s [0.3 m/s] Max. 40 ft/s [12 m/s]
• Mounting Type: Single Point
• Output Signal: 0...5V 0...10V
• Probe Length: 7" [180 mm]
• Product Type: Sensor
• Sensor Type: Air quality
• Voltage AC/DC: AC/DC24V
• Gas Type: CO2
• Measurement Range: CO2: 0 to 2000 ppm Humidity: 0 to 100% RH Temperature: 32 Humidity: 0 to 100% RH Temperature: 32°F to 120°F [0°C to 50°C]
• Supply Voltage: 24 VAC, Humidity: 0 to 100% RH Temperature: 32°F to 120°F [0°C to 50°C]
• Accuracy: CO2: Humidity: 0 to 100% RH Temperature: 32°F to 120°F [0°C to 50°C]
• Humidity: 85% RH non-condensing
• Operating Temperature: 32 Humidity: 0 to 100% RH Temperature: 32°F to 120°F [0°C to 50°C]
• Signal Output: DC 0-5V, DC 0-10V, 4-20 mA
• Sensing Technology: NDIR (non-dispersive infrared) with Humidity: 0 to 100% RH Temperature: 32°F to 120°F [0°C to 50°C]
• Weight: 0.26 lbs
• Approvals: IEC/EN, ISO 9001, UL 2043, UL 50
• Warranty: 5 years
