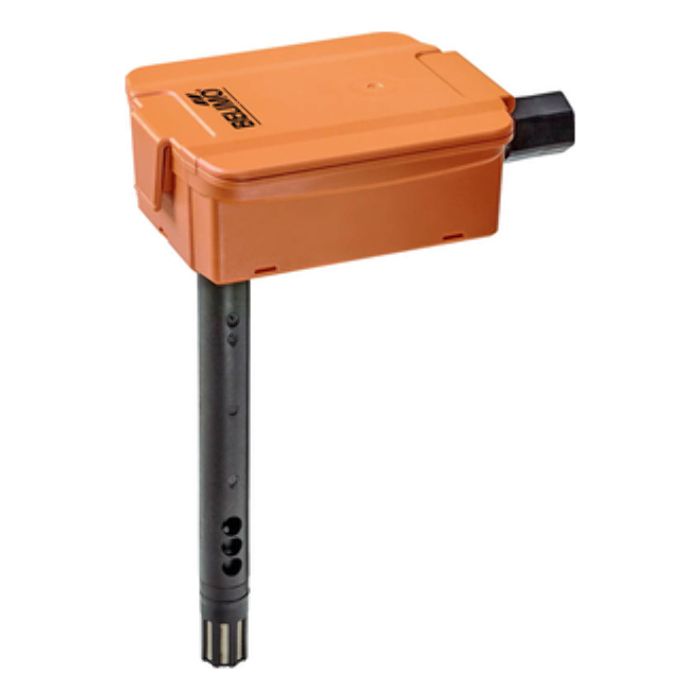

Belimo 22DTM-51 Duct CO2, Humidity And Temp. Sensor

Product Description

The BELIMO 22DTM-51 is an active sensor for measuring CO2, temperature, and humidity in ducts. It features dual channel CO2 technology and provides 0 to 5 VDC, 0 to 10 VDC active output signals. The sensor comes in a NEMA 4X enclosure and includes a CO2 gas conduit adaptor.

• Active sensor for measuring CO2, temperature, and humidity
• Dual Channel CO2 Technology
• CO2 Gas, Conduit Adaptor, Field Selectable

Product Highlights

This duct sensor is ideal for monitoring air quality in various applications.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: 22DTM-51

Technical Specifications

• Mounting: Duct Mount
• Enclosure: NEMA 4X
• Probe Lead: 5-7
• Configuration: 7 Inch Probe
• Sensors Application: Gas Specialty, Humidity, Temperature
• Output Voltage Signal Range: 0 To 5 V, 0 To 10 V
• Item Number: 22DTM-51
• Brand: Belimo
• Sensor Configuration: Duct
• Sensor: CO2 Carbon Dioxide
• Gas Type: CO2
• Voltage AC/DC: AC/DC 24 V
• Electrical Connection: Terminals
• Measured Values: CO2, Temperature, Humidity
• Output Signal: 0...5 V, 0...10 V
• Measuring Range CO2: Default setting: 0...2000 ppm With A-22G-A05: 0...5000 ppm
• Measuring Range Humidity: 0...100% RH
• Measuring Range Temperature: 40...140°F [4...60°C]
• Output Voltage [Range]: 3 x 0...5 V, 0...10 V, min. resistance 10 kΩ
• Output signal active note: output 0...5/10 V with jumper adjustable
• Probe Length: 7" [180 mm]
• MPN: 22DTM-51
• Condition: New
• Display: No
• Measurement Range: 0 - 2,000 ppm
• Application: Greenhouse,Laboratory,Food & Beverage,IAQ,Parking Garage,Agricultural
• Supply Voltage: 24 VAC, ±10%, 2.9 VA (15...24 VDC, ±10%, 1.5 W)
• Measurement Range (CO2): 0 to 2000 ppm
• Measurement Range (Humidity): 0 to 100% RH
• Temperature: 32°F to 120°F [0°C to 50°C]
• Accuracy (CO2): ±75 ppm; >750 ppm: ±10% of measuring value
• Accuracy (Humidity): ±2% between 10 to 90% RH @ 70°F [21°C]
• Accuracy (Temperature): ±1% of measuring range @ 70°F [21°C]
• Humidity: 85% RH non-condensing
• Operating Temperature: 32°F to 120°F [0°C to 50°C]
• Signal Output: DC 0-5V, DC 0-10V, 4-20 mA
• Sensing Technology: NDIR (non-dispersive infrared) with stainless steel wire mesh filter, dual channel calibration
• Weight: 0.26 lbs
• Approvals: IEC/EN, ISO 9001, UL 2043, UL 50
• Warranty: 5 years
• Category: Gas Detection Duct
• Data Sheet: https://www.belimo.com/mam/general-documents/datasheets/en-us/belimo_22DTM-51.._datasheet_en-us.pdf (Download)
• Installation Guide: https://www.belimo.com/mam/global/technical-documentation/installation_instructions/belimo_22DC-.._22DTC-.._22DTM-.._22DCV-.._22DCM-.._22DCK-.._installation-instructions.pdf (Download)
