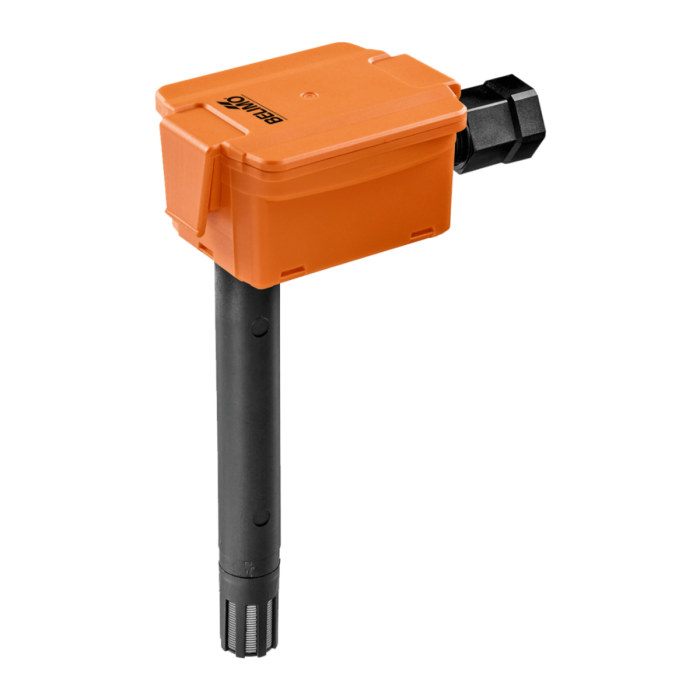

Belimo 22DTH-53ML Duct Humidity And Temperature Sensor

Product Description

Belimo offers the 22DTH-53ML duct humidity and temperature sensor, designed for efficient monitoring in duct applications. This sensor provides reliable readings of humidity and temperature.

• 10K NTC Type II passive temperature output signal.
• 4 to 20 mA active humidity output signal.
• Enclosure rated NEMA 4X for durability.

Product Highlights

This sensor is essential for HVAC systems, providing accurate measurements crucial for maintaining optimal indoor environments.

Product Information

Standard Information

• Brand: Belimo
• Part Number: 22DTH-53ML

Technical Specifications

• Mounting: Duct Mount
• Enclosure: NEMA 4X
• Probe Lead: 5.5 inches
• Configuration: Duct
• Sensors Application: Humidity, Temperature
• Temperature Sensor Type: 10K Type II
• Output Voltage Signal Range: 4 to 20 mA
• Measured Values: Temperature, Humidity
• Measuring Range Humidity: 0 to 100% RH non-condensing
• Measuring Range Temperature: -30 to 160 °F (-35 to 70 °C)
• Measuring Range Velocity: Max. 40 ft/s (12 m/s)
• Electrical Connection: Terminals
