Belimo 22DTH-53M Duct Humidity And Temperature Sensor Power 4 To 20 mA Replacement MPN

Product Description

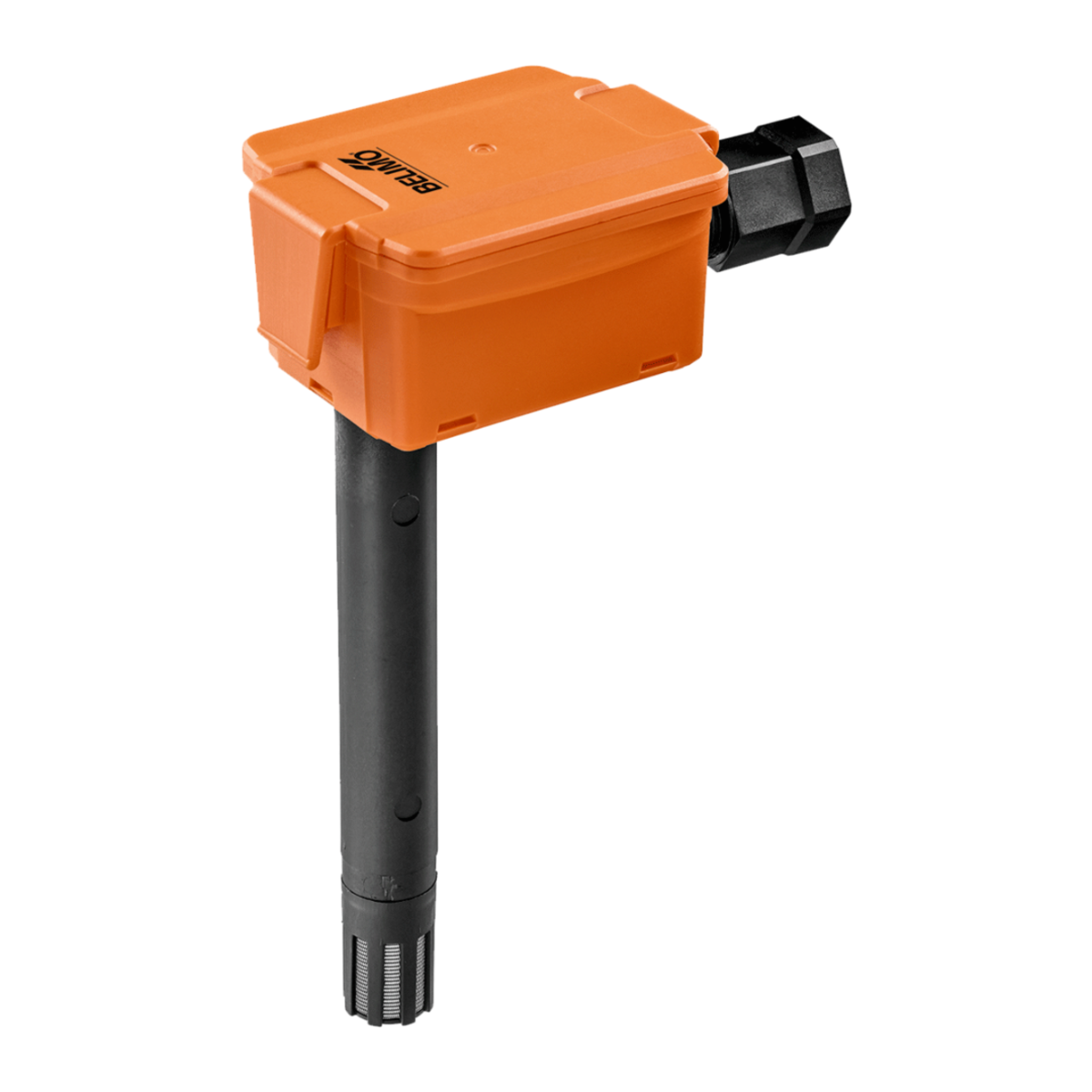

The Belimo 22DTH-53M is a duct humidity and temperature sensor that provides a 4 to 20 mA active output signal. This device is designed to measure relative or absolute humidity in duct applications. It features a NEMA 4X enclosure for durability in various environments.

• Active sensor measures humidity and temperature
• Select output signal options include relative humidity, enthalpy, or dew point
• Includes conduit adapter for easy installation

Product Highlights

This device is suitable for use in HVAC applications and provides reliable data for maintaining optimal indoor air quality.

Product Information

Standard Information

• Brand: Belimo
• Model: 22DTH-53M

Technical Specifications

• Mounting: Duct Mount
• Enclosure: NEMA 4X
• Probe Lead Length: 5-7 inches
• Configuration: Duct
• Sensors Application: Humidity, Temperature
• Output Voltage Signal Range: 4 To 20 mA
• Measured Values: Humidity, Temperature
• Degree of Protection: IP65 NEMA 4X
• Electrical Connection: Terminals
• Measuring Range Humidity: 0 to 100% RH non-condensing
• Measuring Range Velocity: Max. 40 ft/s (12 m/s)
