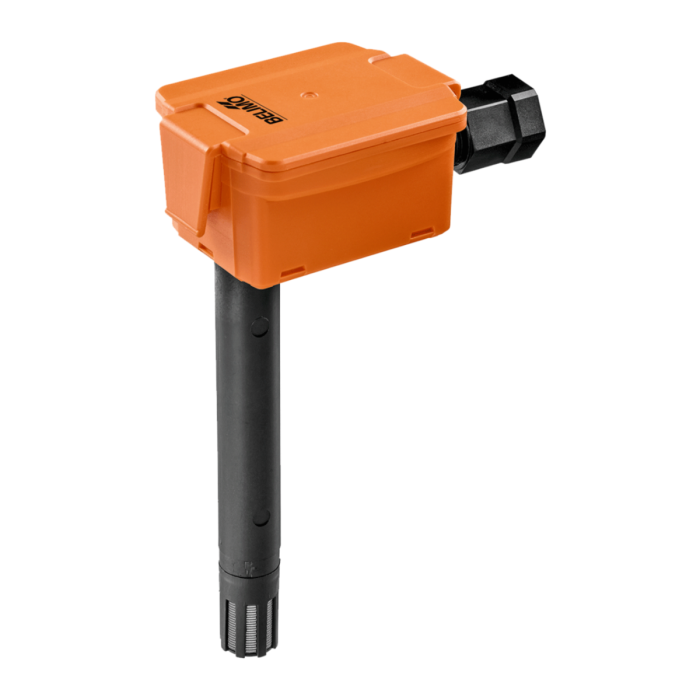

Belimo 22DTH-51MM Duct Humidity And Temperature Sensor 10K NTC Passive Signal

Product Description

The Belimo 22DTH-51MM is a duct humidity and temperature sensor designed for HVAC applications. This sensor measures relative and absolute humidity along with temperature in duct systems. It features a NEMA 4X enclosure suitable for various environments.

• 10K NTC type III passive temperature output signal
• Active humidity output with options from zero to five volts and zero to ten volts
• Field-selectable output signal for either dew point or enthalpy

Product Highlights

This sensor provides reliable measurements in HVAC systems, ensuring optimal performance and energy efficiency.

Product Information

Standard Information

• Brand: Belimo
• Part Number: 22DTH-51MM

Technical Specifications

• Mounting Type: Duct Mount
• Enclosure: NEMA 4X
• Probe Length: 5.5 inches
• Application: Humidity, Temperature
• Temperature Sensor Type: 10K Type III
• Output Voltage Signal Range: 0 to 5 V, 0 to 10 V
• Measuring Range Humidity: 0 to 100% RH non-condensing
• Measuring Range Temperature: -30 to 160 degrees Fahrenheit
