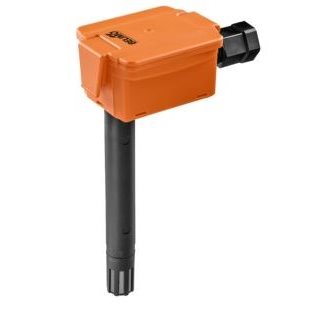

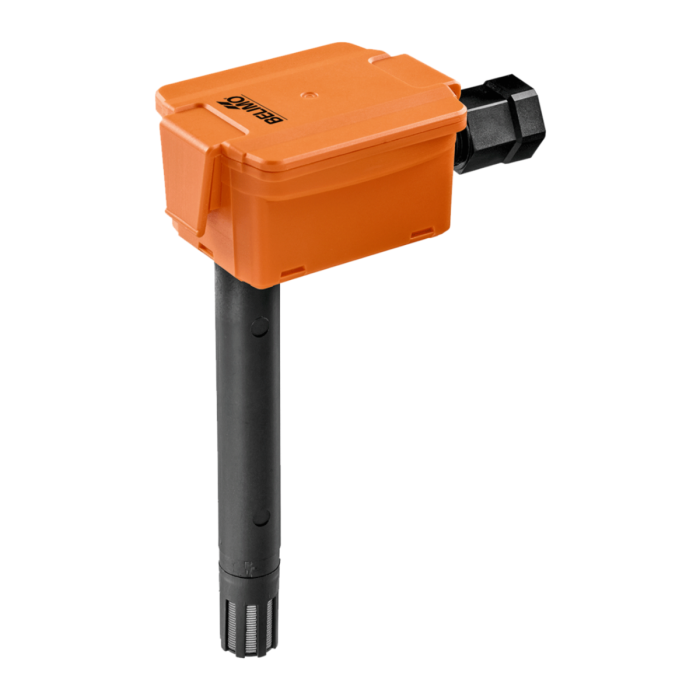

Belimo 22DTH-51MB Duct Humidity And Temperature Sensor

Product Description

Belimo 22DTH-51MB is a duct temperature and humidity sensor designed for HVAC applications. This sensor provides passive temperature output with a PT1000 temperature sensor for reliable readings. It features adjustable output options for both humidity and temperature, facilitating tailored installation and setup.

• Humidity sensor with adjustable output: 0 to 5 volts and 0 to 10 volts
• Durable design with NEMA 4X / IP65 enclosure
• Includes conduit adaptor for easy installation

Product Highlights

This sensor is ideal for monitoring the relative or absolute humidity and temperature in duct systems. The field-selectable signal options allow for flexibility in installation.

Product Information

Standard Information

• Product Type: Duct
• Manufacturer: Belimo

Technical Specifications

• Temperature Sensor Type: PT1000
• Output Voltage Signal Range: 0 to 5 V, 0 to 10 V
• Accuracy: 2%
• Probe Length: 5 inches
• Probe Diameter: 0.77 inches
• Mounting: Duct Mount
• Enclosure: NEMA 4X
• Signal Type: VDC
